LM4913

Features: Advanced click and pop suppression circuitry Stereo headphone amplifier mode Low current micro-power shutdown mode Thermal shutdown protection circuitry 2.5V to 5.5V operation Unity-gain stable Gain set with external resistors Space-saving exposed-DAP TSSOP packageApplication PDAs Cel...

product image

LM4913 Picture
See larger image
SeekIC No. : 004395882 Detail

LM4913: Features: Advanced click and pop suppression circuitry Stereo headphone amplifier mode Low current micro-power shutdown mode Thermal shutdown protection circuitry 2.5V to 5.5V operation Unity-gai...

LM4913 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM4913
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Advanced "click and pop" suppression circuitry
Stereo headphone amplifier mode
Low current micro-power shutdown mode
Thermal shutdown protection circuitry
2.5V to 5.5V operation
Unity-gain stable
Gain set with external resistors
Space-saving exposed-DAP TSSOP package


Application

PDAs
Cellular phones
Handheld portable electronic devices


Pinout

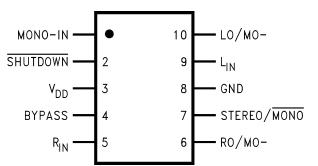

Connection Diagram


Specifications

Supply Voltage                                                                6.0V
Storage Temperature                                   −65˚C to +150˚C
Input Voltage                                           −0.3V to VDD +0.3V
Power Dissipation (Note 5)                        Internally Limited
ESD Susceptibility (Note 6)                                         2000V
ESD Susceptibility (Note 7)                                           200V
Junction Temperature                                                  150˚C
Solder Information
Small Outline Package
Vapor Phase (60sec)                                                    215˚C
Infrared (15sec)                                                           220˚C
Thermal Resistance
JA (MXF10A)                                                46˚C/W (Note 8)


Description

The unity-gain stable LM4913 is both a mono differential output (for bridge-tied loads, or BTL) audio power amplifier and a single-ended (SE) stereo headphone amplifier. Oper-ating on a single 5V supply, the mono BTLmode delivers 2W (typ) to a 4Ω load (Note 1) at 0.3% THD+N. In SE stereo mode, the amplifier will deliver 90mW to 32Ω loads.TheLM4913 features circuitry that suppresses output transients("clicks and pops").

The LM4913 is designed for notebook and other handheld portable applications. It delivers high quality output power from a surface-mount package and requires few external components. The LM4913 is pin and functionally compatible with the TPA0213.

Other features include an active-low micro-power shutdown mode and thermal shutdown protection.

The LM4913 is available a space efficient 10-lead exposed-DAP TSSOP package.
