Features:

Fully differential input and output
Internal gain set: 6dB, 10dB, 15.6dB, and 21.6dB
Improved 'click and pop' suppression
Thermal shutdown protection circuit
Ultra low current micropower shutdown mode
2.0V to 5.5V operation
Available in space-saving exposed-DAP TSSOP package




Application

Notebook computers
PDAs
Portable electronic devices




Pinout

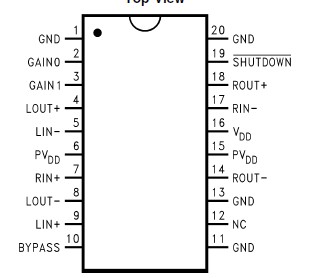

Connection Diagram




Specifications

Power@ 4Ohms, 1% THD 1.9 Watt
Power@ 8Ohms, 1% THD 1.2 Watt
Power@ 4Ohms, 10% THD 1.9 Watt
Power@ 8Ohms, 10% THD 1.5 Watt
THD 0.3 %
PSRR 62 dB
SNR 97 dB
Channels 2 Channels
Supply Range +2.7 - +5.5 V
User Supply 5 Volt
Shutdown Type High
Temperature Min -40 deg C
Temperature Max 85 deg C
View Using Catalog





Description

The LM4869 features differential stereo inputs, BTL (bridge-tied load) outputs, and four externally selectable fixed gains. Operating on a single 5V supply, the LM4869 delivers 1.2W and 1.9W (typ) of output power to an 8 and 4 BTL load (Note 1), respectively, with less than 1% THD+N. The LM4869's gain is selected using two digital inputs. The nominal gain values are 6dB, 10dB, 15.6dB, and 21.6dB.

The LM4869 is designed for notebook and other handheld portable applications. It delivers high quality output power from a surface-mount package and requires few external components.

Other features include an active-low micropower shutdown mode input and thermal shutdown protection.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LM4869MH CS065 2 34108 59 0 3862000 1 1095853045

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.
