LM4850

Features: Mono 1.5W BTL or stereo 300mW outputHeadphone sense Click and pop suppression circuitryNo bootstrap capacitors requiredThermal shutdown protectionUnity-gain stableLLP, TSSOP, and MSOP packagingApplicationPortable computersDesktop computersPDA'sHandheld gamesPinoutSpecificationsSupply Vo...

product image

LM4850 Picture
See larger image
SeekIC No. : 004395803 Detail

LM4850: Features: Mono 1.5W BTL or stereo 300mW outputHeadphone sense Click and pop suppression circuitryNo bootstrap capacitors requiredThermal shutdown protectionUnity-gain stableLLP, TSSOP, and MSOP pac...

LM4850 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM4850
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Mono 1.5W BTL or stereo 300mW output
Headphone sense
"Click and pop" suppression circuitry
No bootstrap capacitors required
Thermal shutdown protection
Unity-gain stable
LLP, TSSOP, and MSOP packaging




Application

Portable computers
Desktop computers
PDA's
Handheld games




Pinout

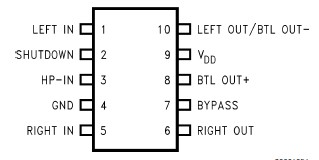

Connection Diagram




Specifications

Supply Voltage ..................................................6.0V
Storage Temperature ...................−65°C to +150°C
ESD Susceptibility (Note 5) ..............................3.5kV
ESD Machine model (Note 8) ............................250V
Junction Temperature (TJ) ..............................150°C
Solder Information (Note 2)
Small Outline Package
Vapor Phase (60 sec.) .................................215°C
Infrared (15 sec.) 2........................................20°C
Thermal Resistance
JA (typ)-MUB10A ....................................194°C/W
JC (typ)-MUB10A...................................... 52°C/W
JA (typ)-MTC14...................................... 150°C/W
JC (typ)-MTC14 ........................................40°C/W
JA (typ)-LDA14A (Note 10)....................... 56°C/W
JC (typ)-LDA14A ......................................4.3°C/W

Power@ 4Ohms, 1% THD 1.7 Watt
Power@ 8Ohms, 1% THD 1.1 Watt
Power@ 4Ohms, 10% THD 2.4 Watt
Power@ 8Ohms, 10% THD 1.45 Watt
SNR 100 dB
Channels 2 Channels
Supply Range +2.4 - +5.5 V
THD Conditions Undefined
PSRR Conditions Undefined
SNR Conditions Undefined
User Supply 5 Volt
Temperature Min -40 deg C
Temperature Max 85 deg C
View Using Catalog





Description

The LM4850 is an audio power amplifier capable of delivering 1.5W (typ) of continuous average power into a mono 4 bridged-tied load (BTL) with 1% THD+N or 95mW per channel of continuous average power into stereo 32 single-ended (SE) loads with 1% THD+N, using a 5V power supply.

The LM4850 can automatically switch between mono BTL and stereo SE modes utilizing a headphone sense pin. It is ideal for any system that provides both a monaural speaker output and a stereo line or headphone output

Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. Since the LM4850 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems.

The LM4850 features an externally controlled, micropower consumption shutdown mode and thermal shutdown protection. The unity-gain stable LM4850's gain is set by external gain-setting resistors
