LM4680

Features: Soft-start circuitry eliminates noise during turn-on transitionLow current shutdown modeLow quiescent current6W BTL output, RL = 8, THD+N = 1%Short circuit protectionFixed, internally set gain of 30dBInternal clamp diodes protect amplifier outputsApplicationFlat Panel MonitorsFlat Panel ...

product image

LM4680 Picture
See larger image
SeekIC No. : 004395749 Detail

LM4680: Features: Soft-start circuitry eliminates noise during turn-on transitionLow current shutdown modeLow quiescent current6W BTL output, RL = 8, THD+N = 1%Short circuit protectionFixed, internally set ...

LM4680 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM4680
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Soft-start circuitry eliminates noise during turn-on transition
 Low current shutdown mode
 Low quiescent current
 6W BTL output, RL = 8, THD+N = 1%
 Short circuit protection
 Fixed, internally set gain of 30dB
 Internal clamp diodes protect amplifier outputs


Application

 Flat Panel Monitors
 Flat Panel TVs
 Computer Sound Cards


Pinout

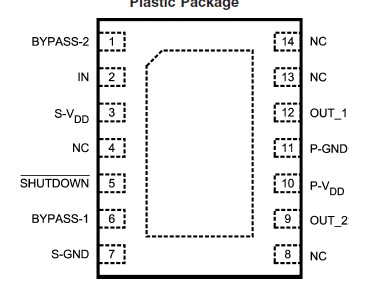

Connection Diagram


Specifications

Supply Voltage ........................................................16V
Storage Temperature ........................−65°C to +150°C
Input Voltage................................. −0.3V to VDD +0.3V
Power Dissipation (Note 3).................. Internally limited
ESD Susceptibility(Note 4) ....................................2000V
ESD Susceptibility (Note 5) .....................................200V
Junction Temperature ...........................................150°C
Thermal Resistance
   JC (LD) ............................................................2°C/W
   JA (LD) ..........................................................40°C/W


Description

The LM4680 is a high efficiency switching audio power amplifier primarily designed for demanding applications in flat panel monitors and TV's. It is capable of delivering 10W to an 8 mono BTL load with less than 10% distortion (THD+N) when powered from a 14VDC power supply.

Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. The LM4680 features a micro-power, active-low shutdown mode, an internal thermal shutdown protection mechanism, output fault detect, and short circuit protection.

The LM4680 contains advanced transient ("pop and click") suppression circuitry that eliminates noises that would otherwise occur during turn-on and turn-off transitions.
