Features: `Easily drives 600 loads
`Optimized for superior audio signal fidelity
`Output short circuit protection
`PSRR and CMRR exceed 120dB (typ)
`SOIC, DIP, TO-99 metal can packagesApplication·Ultra high quality audio amplification
·High fidelity preamplifiers
·High fidelity multimedia
·State of the art phono pre amps
·High performance professional audio
·High fidelity equalization and crossover networks
·High performance line drivers
·High performance line receivers

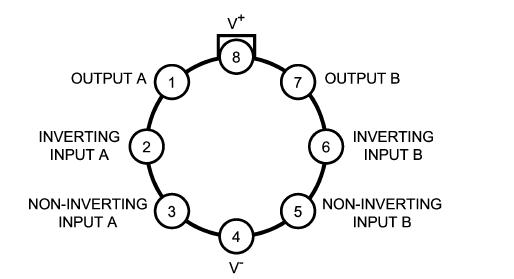

·High fidelity active filtersPinout
SpecificationsIf Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
| Power Supply Voltage (VS = V+ - V-) |
36V |
| Storage Temperature |
−65°C to 150°C |
| Input Voltage |
(V-) - 0.7V to (V+) + 0.7V |
| Output Short Circuit (Note 3) |
Continuous |
| Power Dissipation |
Internally Limited |
| ESD Susceptibility (Note 4) |
2000V |
| ESD Susceptibility (Note 5) |
|
| Pins 1, 4, 7 and 8 |
200V |
| Pins 2, 3, 5 and 6 |
100V |
| Junction Temperature |
150°C |
| Thermal Resistance |
|
| JA (SO) |
145°C/W |
| JA (NA) |
102°C/W |
| JA (HA) |
150°C/W |
| JC (HA) |
35°C/W |
| Temperature Range TMIN TA TMAX |
40°C TA 85°C |
| Supply Voltage Range |
±2.5V VS ± 17V |
DescriptionThe LM4562 is part of the ultra-low distortion, low noise, high slew rate operational amplifier series optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state-of-the-art circuit design, the LM4562 audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The LM4562 combines extremely low voltage noise density (2.7nV/Hz) with vanishingly low THD+N (0.00003%) to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LM4562 has a high slew rate of ±20V/s and an output current capability of ±26mA. Further, dynamic range is maximized by an output stage that drives 2k loads to within 1V of either power supply voltage and to within 1.4V when driving 600 loads.
The LM4562's outstanding CMRR (120dB), PSRR (120dB), and VOS (0.1mV) give the amplifier excellent operational amplifier DC performance.
The LM4562 has a wide supply range of ±2.5V to ±17V. Over this supply range the LM4562's input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LM4562 is unity gain stable. This Audio Operational Amplifier achieves outstanding AC performance while driving complex loads with values as high as 100pF.
The LM4562 is available in 8lead narrow body SOIC, 8lead Plastic DIP, and 8lead Metal Can TO-99. Demonstration boards are available for each package.
LM4562 Data Sheet
