DescriptionThe LM4140ACMX-1.0 is one member of the LM4140 family which is designed as the high precision low noise low dropout voltage reference that can be used in (1)portable, battery powered equipment; (2)instrumentation and test equipment; (3)automotive; (4)industrial process control; (5)ndata acquisition systems; (6)medical equipment; (7)precision scales; (8)servo systems; (9)battery charging applications. This device is the industry's first reference with output voltage options lower than the bandgap voltage, and is available in three grades (A, B, C) with 0.1% initial accuracy and 3, 6 and 10 ppm/°C temperature coefficients.

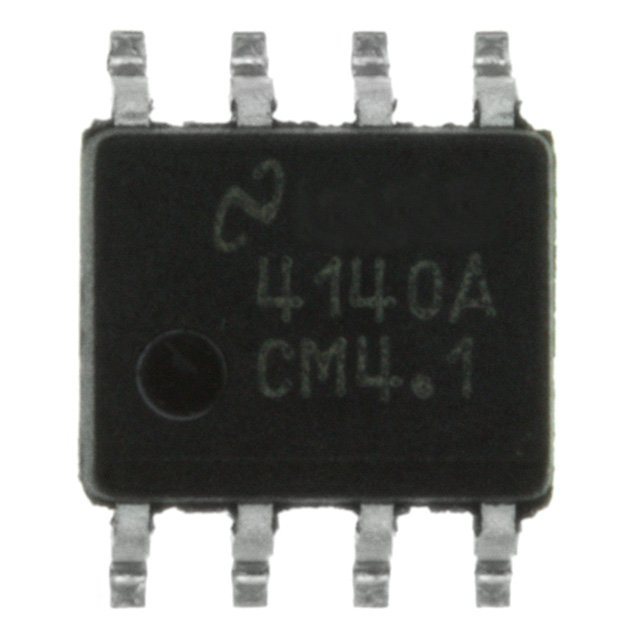

Features of the LM4140ACMX-1.0 are:(1)High initial accuracy: 0.1%; (2)Ultra low noise; (3)Low Temperature Coefficient: 3 ppm/°C (A grade); (4)Low voltage operation: 1.8V; (5)SO-8 package; (6)Low dropout voltage: 20 mV (typ) @ 1mA; (7)Supply Current: 230 A (typ), </= 1 A disable mode; (8)Enable pin; (9)Output voltage options: 1.024V, 1.250V, 2.048V, 2.500V, and 4.096V; (10)Custom voltages from 0.5V to 4.5V; (11)Temperature range (0°C to 70°C).
The absolute maximum ratings of the LM4140ACMX-1.0 can be summarized as:(1)Maximum Voltage on any Input pin: -0.3 V to 5.6 V;(2)Output Short-Circuit Duration: Indefinite;(3)Power Dissipation (TA = 25°C): 345 mW;(4)ESD Susceptibility Human Body Model: 2 kV;(5)ESD Susceptibility Machine Model: 200 V;(6)Storage Temperature Range: -65°C to +150°C;(7)Ambient Temperature Range: 0°C to 70°C;(8)Junction Temperature Range: 0°C to 80°C;(9)Lead Temperature: Soldering, (10 sec.): +260°C.
The electrical characteristics of this device can be summarized as:(1)Short Circuit Current: 8.5 to 35 mA;(2)Logic Low Input Current: 1 nA;(3)Logic Low Input Voltage: 0.4 V;(4)Logic High Input Current: 2 nA;(5)Logic High Input Voltage: 0.8VIN V;(6)Supply Current: 0.01 uA to 1 uA. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
