LM3702

PinoutSpecificationsPower on ResetYesWatchdogNoPower Fail InputNoManual ResetYesReset Timeout Period1600, 200, 1.4 msOn/Off PinYesError FlagYesInput Min Voltage1 VoltInput Max Voltage5.5 VoltRegTypeSupervisorTemperature Min-40 deg CTemperature Max85 deg CVoltage Supervised2.35 Volt View Using Cata...

product image

LM3702 Picture
See larger image
SeekIC No. : 004395421 Detail

LM3702: PinoutSpecificationsPower on ResetYesWatchdogNoPower Fail InputNoManual ResetYesReset Timeout Period1600, 200, 1.4 msOn/Off PinYesError FlagYesInput Min Voltage1 VoltInput Max Voltage5.5 VoltRegType...

LM3702 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM3702
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Power on ResetYes
WatchdogNo
Power Fail InputNo
Manual ResetYes
Reset Timeout Period1600, 200, 1.4 ms
On/Off PinYes
Error FlagYes
Input Min Voltage1 Volt
Input Max Voltage5.5 Volt
RegTypeSupervisor
Temperature Min-40 deg C
Temperature Max85 deg C
Voltage Supervised2.35 Volt
View Using Catalog



Description

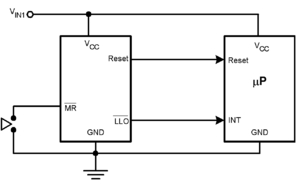

The LM3702/LM3703 series of microprocessor supervisory circuits provide the maximum flexibility for monitoring power supplies and battery controlled functions in systems without backup batteries. The LM3702/LM3703 series are available in a 9-bump micro SMD package.

Built-in features include the following:

Reset: Reset is asserted during power-up, power-down, and brownout conditions. RESET# is guaranteed down to VCC of 1.0V.

Manual Reset Input: An input that asserts reset when pulled low.

Low Line Output: This early power failure warning indicator goes low when the supply voltage drops to a value which is 2% higher than the reset threshold voltage.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LM3702XCTP-308 CS065 2 34108 59 0 3862000 1 1095853045
LM3702XCTPX-308 CS065 2 34108 59 0 3862000 1 1095853045
LM3702YATP-290 CS065 2 34108 59 0 3862000 1 1095853045
LM3702YATP-308 CS065 2 34108 59 0 3862000 1 1095853045
LM3702YATPX-290 CS065 2 34108 59 0 3862000 1 1095853045
LM3702YATPX-308 CS065 2 34108 59 0 3862000 1 1095853045
LM3702YDTP-220 CS065 2 34108 59 0 3862000 1 1095853045
LM3702YDTPX-220 CS065 2 34108 59 0 3862000 1 1095853045

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.
