PinoutSpecificationsOutput Current1000 mAInput Min Voltage2.5 VoltInput Max Voltage5.5 VoltOutput Min0.8 VoltOutput Max1.2 VoltFrequency Min2700 kHzFrequency Max3600 kHzEfficiency (peak)85 %On/Off PinYesError FlagYesSoftStartYesRegTypeSwitching RegulatorTemperature Min-30 deg CTemperature Max85 de...

See larger image

SeekIC No. : 004395414 Detail

LM3678: PinoutSpecificationsOutput Current1000 mAInput Min Voltage2.5 VoltInput Max Voltage5.5 VoltOutput Min0.8 VoltOutput Max1.2 VoltFrequency Min2700 kHzFrequency Max3600 kHzEfficiency (peak)85 %On/Off P...

LM3678 Data Sheet

Get Latest Price

Part Number:: LM3678
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Pinout

Specifications

Output Current	1000 mA
Input Min Voltage	2.5 Volt
Input Max Voltage	5.5 Volt
Output Min	0.8 Volt
Output Max	1.2 Volt
Frequency Min	2700 kHz
Frequency Max	3600 kHz
Efficiency (peak)	85 %
On/Off Pin	Yes
Error Flag	Yes
SoftStart	Yes
RegType	Switching Regulator
Temperature Min	-30 deg C
Temperature Max	85 deg C
Adjustable Output	No
PWM Mode	Voltage
Topology	Synchronous Buck
Step-Down	Yes
Multiple Output Capability	Yes
Output Range	0.8/1.2
Switching Frequency	3300 kHz
Regulator Family	SIMPLE SWITCHER
AEC Q-100 Automotive Grade	Undefined
Automotive Selection Guide	No
PowerWise	Yes
Synchronous Rectification	Yes
View Using Catalog

Description

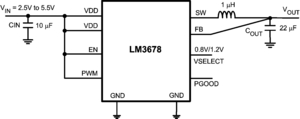

The LM3678 step-down DC-DC converter is optimized for powering low voltage circuits from a single Li-Ion cell battery and input voltage rails from 2.5V to 5.5V. It provides up to 1.5A load current, over the entire input voltage range. LM3678 offers a 0.8V/1.2V option. One of the pair of voltages is set through the VSELECT pin.

LM3678 operates in PWM mode with a fixed frequency of 3.3MHz. Internal synchronous rectification provides high efficiency during PWM mode operation. In shutdown mode, the device turns off and reduces battery consumption to 0.01µA (typ).

The LM3678 is available in a 3mm x 3mm LLP-10 package. A high switching frequency of 3.3MHz (typ.) allows use of tiny surface-mount components. Only three external surface-mount components, an inductor and two ceramic capacitors, are required (solution size less than 33 mm 2). For voltages other than the voltage shown, please refer to ordering information section or contact National Semiconductor.

Reliability Metrics

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
LM3678SD-1.2	CMOS7	0	16561	0	0	954000	4	270700104
LM3678SDE-1.2	CMOS7	0	16561	0	0	954000	4	270700104
LM3678SDX-1.2	CMOS7	0	16561	0	0	954000	4	270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.

Application Notes

Title	Size in Kbytes	Date
AN-1722: Application Note 1722 LM3678 Evaluation Board	506 Kbytes	14-Oct-08	Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

Title	Size in Kbytes	Date
AN-1682: Application Note 1682 LM3679TL Evaluation Board	3720 Kbytes	14-Oct-08	Download
AN-1395: Application Note 1395 LM3671 Evaluation Board	3838 Kbytes	10-Oct-08	Download
AN-1395 (Chinese): Application Note 1395 LM3671 Evaluation Board	321 Kbytes		640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1465: Application Note 1465 LM3673 Evaluation Board	3717 Kbytes	10-Oct-08	Download
AN-1465 (Chinese): Application Note 1465 LM3673 Evaluation Board	269 Kbytes		640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1427: Application Note 1427 LM3674 Evaluation Board	4966 Kbytes	14-Oct-08	Download
AN-1427 (Chinese): Application Note 1427 LM3674 Evaluation Board	292 Kbytes		640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1595: Application Note 1595 LM3677 Evaluation Board	2801 Kbytes	14-Oct-08	Download
AN-1536: Application Note 1536 LM3676 Evaluation Board	417 Kbytes	14-Oct-08	Download
AN-1536 (Chinese): Application Note 1536 LM3676 Evaluation Board	278 Kbytes		640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1348: Application Note 1348 LM3670 Evaluation Board	3906 Kbytes	9-Oct-08	Download
AN-1348 (Chinese): Application Note 1348 LM3670 Evaluation Board	257 Kbytes		640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

If you have trouble printing or viewing PDF file(s), see Printing Problems.
