LM358AP

Operational Amplifiers - Op Amps Dual

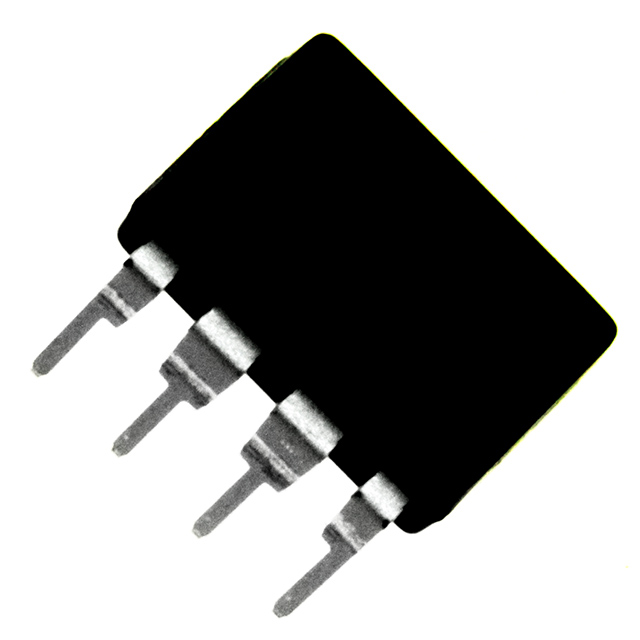

product image

LM358AP Picture
See larger image
SeekIC No. : 00290083 Detail

LM358AP: Operational Amplifiers - Op Amps Dual

LM358AP Data Sheet

floor Price/Ceiling Price

US $ .12~.25 / Piece | Get Latest Price
Part Number:
LM358AP
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.25
  • $.18
  • $.13
  • $.12
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Channels : 2 Common Mode Rejection Ratio (Min) : 65 dB
Input Offset Voltage : 3 mV Input Bias Current (Max) : 100 nA
Operating Supply Voltage : 32 V Mounting Style : Through Hole
Package / Case : PDIP-8 Slew Rate : 0.3 V/us
Shutdown : No Output Current : 30 mA
Maximum Operating Temperature : + 70 C Packaging : Tube

Description

Number of Channels : 2
Packaging : Tube
Output Current : 30 mA
Input Offset Voltage : 3 mV
Shutdown : No
Common Mode Rejection Ratio (Min) : 65 dB
Input Bias Current (Max) : 100 nA
Mounting Style : Through Hole
Package / Case : PDIP-8
Slew Rate : 0.3 V/us
Maximum Operating Temperature : + 70 C
Operating Supply Voltage : 32 V


Parameters:

Technical/Catalog InformationLM358AP
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
PackagingTube
Amplifier TypeGeneral Purpose
Number of Circuits2 - Dual
Package / Case8-DIP (300 mil)
Slew Rate0.3 V/s
Gain Bandwidth Product700kHz
Current - Supply1mA
Current - Output / Channel30mA
Voltage - Supply, Single/Dual (±)3 V ~ 32 V, ±1.5 V ~ 16 V
Output Type-
-3db Bandwidth-
Current - Input Bias20nA
Operating Temperature0°C ~ 70°C
Voltage - Input Offset2000V
Drawing Number296; 4040082; P; 8
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LM358AP
LM358AP
296 9554 5 ND
29695545ND
296-9554-5
