LM3519

PinoutSpecificationsRegulated LEDs4Boost TypeInductiveSwitching Frequency2000 kHzEfficiency (peak)80 %Input Min Voltage2.7 VoltInput Max Voltage5.5 VoltOutputMax Voltage18.9 VoltSpecial FeaturesUp to 30kHz PWM dimming outputPWM BrightCtrlNoAnalog-V BrightCtrlNoAmbient Light CompensationNoRGB-LEDNo...

product image

LM3519 Picture
See larger image
SeekIC No. : 004395367 Detail

LM3519: PinoutSpecificationsRegulated LEDs4Boost TypeInductiveSwitching Frequency2000 kHzEfficiency (peak)80 %Input Min Voltage2.7 VoltInput Max Voltage5.5 VoltOutputMax Voltage18.9 VoltSpecial FeaturesUp t...

LM3519 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM3519
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Regulated LEDs4
Boost TypeInductive
Switching Frequency2000 kHz
Efficiency (peak)80 %
Input Min Voltage2.7 Volt
Input Max Voltage5.5 Volt
OutputMax Voltage18.9 Volt
Special FeaturesUp to 30kHz PWM dimming output
PWM BrightCtrlNo
Analog-V BrightCtrlNo
Ambient Light CompensationNo
RGB-LEDNo
Temperature Min-40 deg C
Temperature Max85 deg C
RegTypeSwitching Regulator
PowerWiseYes
View Using Catalog



Description

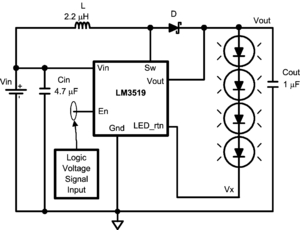

The LM3519 drives up to 4 white LEDs with constant current to provide LCD backlighting in handheld devices. The LED current is internally set to 20mA. The series connection allows the LED current to be identical for uniform brightness and minimizes the number of traces to the LEDs. Brightness control is achieved by applying a PWM signal on enable with frequencies up to 30kHz.

The LM3519 features a proprietary PFM regulation architecture with switching frequencies between 2MHz to 8MHz, minimizing inductor size.

Over-voltage protection circuitry and high frequency operation permit the use of low-cost small output capacitors. During shutdown, the output is disconnected from the input in order to avoid leakage current path through the LEDs to ground.

The LM3519 is available in a tiny 6-pin SOT23 package.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LM3519MK-20 ABCD150 0 31520 0 0 3739000 1 1060951459
LM3519MKX-20 ABCD150 0 31520 0 0 3739000 1 1060951459

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Application Notes

Title Size in Kbytes Date
AN-1406: Application Note 1406 LM3519 Evaluation Board 653 Kbytes 17-Feb-06 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

Title Size in Kbytes Date
AN-D: Application Note D Versatile Monolithic V/Fs can Compute as Well as Convert with High Accuracy 248 Kbytes 3-Oct-02 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.
