LM348

Features: mA741 Operating Characteristics Low Supply Current Drain . . . 0.6 mA Typ(per amplifier) Low Input Offset Voltage Low Input Offset Current Class AB Output Stage Input/Output Overload ProtectionDesigned to Be Interchangeable With National LM148, LM248, and LM348PinoutSpecifications ...

product image

LM348 Picture
See larger image
SeekIC No. : 004395342 Detail

LM348: Features: mA741 Operating Characteristics Low Supply Current Drain . . . 0.6 mA Typ(per amplifier) Low Input Offset Voltage Low Input Offset Current Class AB Output Stage Input/Output Overload Prot...

LM348 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM348
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

mA741 Operating Characteristics
Low Supply Current Drain . . . 0.6 mA Typ(per amplifier)
Low Input Offset Voltage
Low Input Offset Current
Class AB Output Stage
Input/Output Overload Protection
Designed to Be Interchangeable With National LM148, LM248, and LM348




Pinout

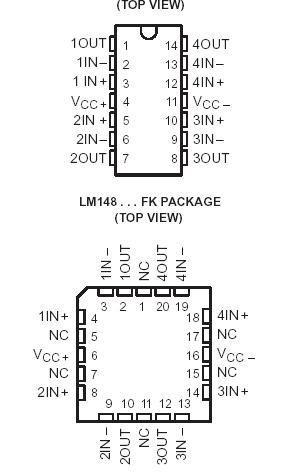

Connection Diagram




Specifications

Gain Bandwidth 1 MHz
Channels 4 Channels
Input OutputType Not Rail to Rail
Slew Rate 0.5 Volts/usec
Supply Min 10 Volt
Supply Max 36 Volt
Offset Voltage max, 25C 6 mV
Supply Current Per Channel 0.6 mA
PowerWise Rating 2 600 uA/MHz
Max Input Bias Current 400 nA
Output Current 25 mA
Voltage Noise 60 nV/root(Hz)
Shut down No
Special Features Undefined
Function Op Amp
Temperature Min 0 deg C
Temperature Max 70 deg C
View Using Catalog


LM148 LM248 LM348 UNITS
Supply voltage, VCC+ (see Note 1) 22 18 18 V
Supply voltage, VCC (see Note 1) -22 -18 -18 V
Differential input voltage, VID (see Note 2) 44 36 36 V
Input voltage, VI (either input, see Notes 1 and 3) ±22 ±18 ±18 V
Duration of output short circuit (see Note 4) ±20 ±20 ±20 V
Continuous total power dissipation unlimited unlimited unlimited
Operating free-air temperature range, TA See Dissipation Rating Table o C
Storage temperature range 55 to125 25 to 85 0 to 70
Case temperature for 60 seconds 65 to150 65 to150 65to150 o C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds FK package 260 260 o C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds J package 260 o C
Case temperature for 60 seconds D, N, or PW package 260 o C





Description

The LM148, LM248, and LM348 are quadruple, independent, high-gain, internally compensated operational amplifiers designed to have operating characteristics similar to the mA741. These amplifiers exhibit low supply current drain, and input bias and offset currents that are much less than those of the mA741.

The LM348 is characterized for operation over the full military temperature range of 55°C to 125°C, the LM248 is characterized for operation from 25°C to 85°C, and the LM348 is characterized for operation from 0°C to 70°C.
