Pinout
Specifications| Output Current | 15 mA |
| Output Min | 1.2 Volt |
| Input Min Voltage | Undefined Volt |
| Input Max Voltage | 20 Volt |
| Dropout Voltage | Undefined Volt |
| Adjustable Output | No |
| Quiescent Current | 0.085 mA |
| Feedback Tolerance | 1 % |
| On/Off Pin | No |
| Error Flag | No |
| RegType | Linear/LDO Controller |
| Temperature Min | 0 deg C |
| Temperature Max | 70 deg C |
| Special Features | Can also be used for GTL, GTLp bus voltage control |
| Output Voltage | 1.2 Volt |
| Output Max | 1.2 Volt |
| Feedback Voltage | 1.2 Volt |
| View Using Catalog |
DescriptionThe LM3460 is a monolithic integrated circuit designed for precision control of GTLplus and GTL Bus termination. This controller is available in a tiny SOT23-5 package, and includes an internally compensated op amp, a bandgap reference, an NPN output transistor, and voltage setting resistors.
A trimmed precision bandgap voltage reference utilizes temperature drift curvature correction for excellent voltage stability over the operating range. The precision output control enables the termination voltage to maintain tight regulation, despite fast switching requirements on the bus.

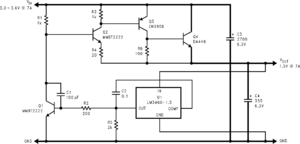

The LM3460 controller is designed to be used with a high current (> 7A) NPN pass transistor to provide the high current needed for the bus termination. The wide bandwidth of the feedback loop provides excellent transient response, and greatly reduces the output capacitance required, thus reducing cost and board space requirements.
Reliability Metrics
| Part Number |
Process |
EFR Reject |
EFR Sample Size |
PPM |
LTA Rejects |
LTA Device Hours |
FITS |
MTTF (Hours) |
| LM3460M5-1.5 |
LFAST1 |
0 |
18610 |
0 |
0 |
2335000 |
2 |
662562625 |
| LM3460M5X-1.5 |
LFAST1 |
0 |
18610 |
0 |
0 |
2335000 |
2 |
662562625 |
Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.For more information on Reliability Metrics, please click here.
