Product Details

Description

Pinout

Specifications

Topology	Boost LED Driver
Input Min Voltage	2.6 Volt
Input Max Voltage	5.5 Volt
Output Range	Vin to 24V
Output Current	1500 mA
Efficiency (peak)	90 %
Output Min	3 Volt
Output Max	24 Volt
Special Features	Dimming SOT23, Dimming LLP6 exp DAP, Dimming eMSOP8 DAP, Dimming LLP6 exp DAP
Adjustable Output	Yes
On/Off Pin	Yes
Error Flag	No
Switching Frequency	1600, 550 kHz
Adj Switch Frequency	No
Sync Pin	No
Step-Down	No
Step-Up	Yes
Inverting	No
Flyback	Yes
RegType	Switching Regulator
Temperature Min	-40 deg C
Temperature Max	125 deg C
Feedback Voltage	0.2 Volt
Automotive Selection Guide	Yes
PowerWise	Yes
View Using Catalog

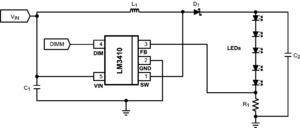

Description

The LM3410 constant current LED driver is a monolithic, high frequency, PWM DC/DC converter in 5-pin SOT23, 6-pin LLP, & 8-pin eMSOP packages. With a minimum of external components the LM3410 is easy to use. It can drive 2.8A typical peak currents with an internal 170 mΩ NMOS switch. Switching frequency is internally set to either 525 kHz or 1.60 MHz, allowing the use of extremely small surface mount inductors and chip capacitors. Even though the operating frequency is high, efficiencies up to 88% are easy to achieve. External shutdown is included, featuring an ultra-low standby current of 80 nA. The LM3410 utilizes current-mode control and internal compensation to provide high-performance over a wide range of operating conditions. Additional features include dimming, cycle-by-cycle current limit, and thermal shutdown.

Reliability Metrics

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
LM3410XMF	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XMFE	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XMFX	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XMY	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XMYE	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XMYX	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XQMF	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XQMFX	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XSD	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XSDE	PVIP050	0	9600	0	0	765000	5	217070838
LM3410XSDX	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YMF	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YMFE	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YMFX	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YMY	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YMYE	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YMYX	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YQMF	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YQMFX	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YSD	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YSDE	PVIP050	0	9600	0	0	765000	5	217070838
LM3410YSDX	PVIP050	0	9600	0	0	765000	5	217070838

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.

Design Tools

Title	Size in Kbytes	Date
Matching Driver to LED	543 Kbytes	9-Jan-2008	View Online	Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

Application Notes

Title	Size in Kbytes	Date
AN-1774: Application Note 1774 LM3410X LED Driver 6-Pin LLP Demo Board	718 Kbytes	1-Feb-08	Download
AN-1773: Application Note 1773 LM3410X LED Driver 5-Pin SOT-23 Demo Board	1213 Kbytes	31-Jan-08	Download
