LM339x2

PinoutSpecificationsSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 36 VDifferential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . ±36 VInput voltage range, VI (any input) . . . . . . . . . . . . . . . . . . . . . . ...

product image

LM339x2 Picture
See larger image
SeekIC No. : 004395292 Detail

LM339x2: PinoutSpecificationsSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 36 VDifferential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . ....

LM339x2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM339x2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

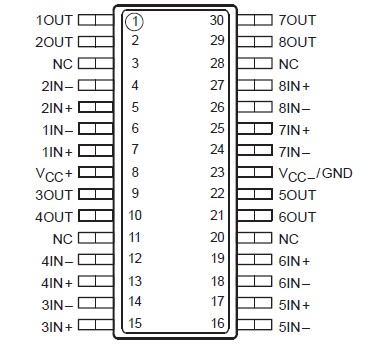

Connection Diagram


Specifications

Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 36 V
Differential input voltage, VID (see Note 2) . . . . . . . . . . . .  . . . . . . . . . . . ±36 V
Input voltage range, VI (any input) . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 36 V
Output voltage, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 36 V
Output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Duration of output short circuit to ground (see Note 3) . . . . . . . . . . .. . unlimited
Continuous total dissipation . . . . . . . . . . . . . . . . .. . See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . .  . . . . 0  to 70
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60  to 150

1. All voltage values, except differential voltages, are with respect to network GND.
2. Differential voltages are at IN + with respect to IN .
3. Short circuits from outputs to VCC can cause excessive heating and eventual destruction.


Description

The LM339x2 consists of eight independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies is also possible when the difference between the two supplies is 2 V to 36 V and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wire-AND relationships.
