Features: ` Boost converter with a 2A, 0.18 switch` Boost output voltage adjustable up to 20V` Operating voltage range of 2.5V to 7V` 660kHz/1.28MHz pin selectable switching frequency` Adjustable soft-start function` Input undervoltage protection` Over temperature protection` Adjustable low dropou...
LM3311: Features: ` Boost converter with a 2A, 0.18 switch` Boost output voltage adjustable up to 20V` Operating voltage range of 2.5V to 7V` 660kHz/1.28MHz pin selectable switching frequency` Adjustable so...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Output Range | Vin to 20V |
Switch Current | 2 Amp |
Input Min Voltage | 2.5 Volt |
Input Max Voltage | 7 Volt |
Frequency Max | 1280 kHz |
Output Max | 20 Volt |
Efficiency (peak) | 93 % |
Sync Pin | No |
Adj Switch Frequency | Yes |
Frequency Min | 660 kHz |
On/Off Pin | Yes |
Error Flag | No |
SoftStart | Yes |
Special Features | Integrated 350mA LDO, Uncommitted op amp, Gate pulse modulation switch |
PWM Mode | Current |
Topology | Boost |
Step-Up | Yes |
Inverting | No |
Flyback | Yes |
RegType | Switching Regulator |
Adjustable Output | Yes |
Temperature Min | -40 deg C |
Temperature Max | 125 deg C |
View Using Catalog |
If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
VIN .........................................................7.5V
SW Voltage .............................................21V
FB Voltage ................................................VIN
VC Voltage (Note 2)................ 1.265V ± 0.3V
SHDNVoltage .........................................7.5V
FREQ .........................................................VIN
AVIN .........................................................12V
Amplifier Inputs/Output Rail-to-Rail
LVIN .........................................................7.5V
ADJ Voltage.............................................. LVIN
VOUT ........................................................LVIN
VGH Voltage ..............................................31V
VGHM Voltage ...........................................VGH
VFLK, VDPM, VDD Voltage .........................7.5V
CE Voltage (Note 2) ....................1.265 + 0.3V
RE Voltage ................................................VGH
Maximum Junction
Temperature .................................150°C
Power Dissipation(Note 3)..... Internally Limited
Lead Temperature ..................................300°C
Vapor Phase (60 sec.) ............................215°C
Infrared (15 sec.) ...................................220°C
ESD Susceptibility (Note 4)
Human Body Model ......................................2kV

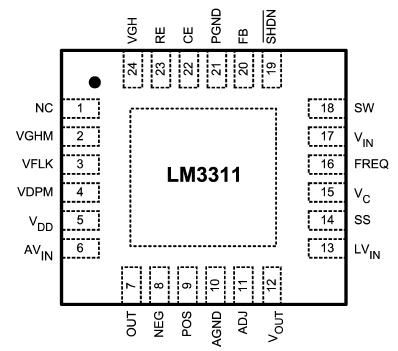

The LM3311 is a step-up DC/DC converter integrated with an LDO, an Operational Amplifier, and a gate pulse modulation switch. The boost (step-up) converter is used to generate an adjustable output voltage and features a low RDSON internal switch for maximum efficiency. The operating frequency is selectable between 660kHz and 1.28MHz allowing for the use of small external components. An external softstart pin enables the user to tailor the soft-start time to a specific application and limit the inrush current. The LDO also has an adjustable output voltage and is stable using ceramic output capacitors. The Op-Amp is capable of sourcing/sinking 135mA of current (typical). The gate pulse modulation switch can operate with a VGH voltage of 5V to 30V. The LM3311 is available in a low profile 24-lead LLP package.
