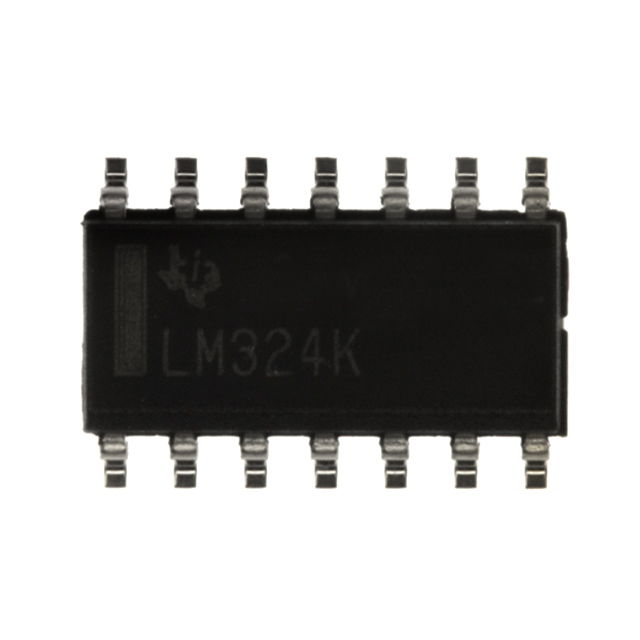

LM324KDRG4

Output Current :
Mounting Style : SMD/SMT
Packaging : Reel
Number of Channels : 4
Slew Rate : 0.5 V/us
Shutdown : No
Common Mode Rejection Ratio (Min) : 65 dB
Package / Case : SOIC-14
Input Offset Voltage : 7 mV
Maximum Operating Temperature : + 70 C
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V
Input Bias Current (Max) : 250 nA


Parameters:

Technical/Catalog Information	LM324KDRG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Packaging	Tape & Reel (TR)
Amplifier Type	General Purpose
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Slew Rate	0.5 V/s
Gain Bandwidth Product	1.2MHz
Current - Supply	1.4mA
Current - Output / Channel	60mA
Voltage - Supply, Single/Dual (±)	3 V ~ 32 V, ±1.5 V ~ 16 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	20nA
Operating Temperature	0°C ~ 70°C
Voltage - Input Offset	3000V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LM324KDRG4 LM324KDRG4
