LM2954

Features: *High accuracy 3.3, 5V fixed output for TO-92, DIP-8 and SOP-8 package.*Extremely low quiescent current and dropout voltage.*Extremely tight load and line regulation.*Current and thermal limiting.*Very low temperature coefficient.*Logic controlled shutdown and error flag available for DI...

product image

LM2954 Picture
See larger image
SeekIC No. : 004395163 Detail

LM2954: Features: *High accuracy 3.3, 5V fixed output for TO-92, DIP-8 and SOP-8 package.*Extremely low quiescent current and dropout voltage.*Extremely tight load and line regulation.*Current and thermal l...

LM2954 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM2954
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*High accuracy 3.3, 5V fixed output for TO-92, DIP-8 and SOP-8 package.
*Extremely low quiescent current and dropout voltage.
*Extremely tight load and line regulation.
*Current and thermal limiting.
*Very low temperature coefficient.
*Logic controlled shutdown and error flag available for DIP and SOP package.
*Output voltage programmable for DIP and SOP package.


Application

*Battery powered equipment.
*High efficient linear regulator down to 1.24V.
*Cellular phones.


Pinout

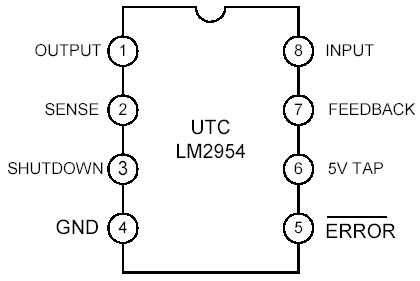

Connection Diagram


Specifications

PARAMETER SYMBOL VALUE UNIT
Supply Voltage Vcc -0.3 ~ +30 V
Feedback Voltage Vfeedback -1.5 ~ +30 V
Shutdown Voltage Vshutdown -0.3 ~ +30 V
Comparator Output Voltage Vco -0.3 ~ +30 V
Storage temperature Tstr -65 ~ +150
Operating Junction
Temperature		 Tj -40 ~ +125



Description

The UTC LM2954 is a monolithic integrated voltage regulator with low dropout voltage, and low quiescent current. It includes many features that suitable for different applications.

Available in 3-pin TO-92,DIP-8,SOP-8 and SOT-223 packages.
