LM2902KAV

Features:

2-kV ESD Protection for:
    − LM224K, LM224KA
    − LM324K, LM324KA
    − LM2902K, LM2902KV, LM2902KAV
Wide Supply Ranges
    − Single Supply . . . 3 V to 32 V
       (26 V for LM2902)
    − Dual Supplies . . . ±1.5 V to ±16 V
       (±13 V for LM2902)
Low Supply-Current Drain Independent of Supply Voltage . . . 0.8 mA Typ
Common-Mode Input Voltage Range
   Includes Ground, Allowing Direct Sensing
   Near Ground
Low Input Bias and Offset Parameters
   − Input Offset Voltage . . . 3 mV Typ
              A Versions . . . 2 mV Typ
   − Input Offset Current . . . 2 nA Typ
   − Input Bias Current . . . 20 nA Typ
               A Versions . . . 15 nA Typ
Differential Input Voltage Range Equal to
    Maximum-Rated Supply Voltage . . . 32 V
      (26 V for LM2902)
Open-Loop Differential Voltage
     Amplification . . . 100 V/mV Typ
Internal Frequency Compensation

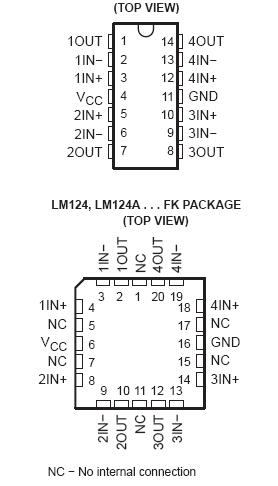

Pinout




Specifications

		LM2902	ALL OTHER DEVICES	UNIT
Supply voltage, VCC (see Note 1)		±13 or 26	±16 or 32	V
Differential input voltage, VID (see Note 2)		±26	±32	V
Input voltage, VI (either input)		−0.3 to 26	−0.3 to 32	V
Duration of output short circuit (one amplifier) to ground at (or below) TA = 25°C, VCC 15 V (see Note 3)		Unlimited	Unlimited
Package thermal impedance, JA (see Notes 4 and 5)	D package	86	86	°C/W
	DB package	96	96
	N package	80	80
	NS package	76	76
	PW package	113	113
Package thermal impedance, JC  (see Notes 6 and 7)	FK package		5.61	°C/W
	J package		15.05
	W package		14.65
Operating virtual junction temperature, TJ		150	150	°C
Case temperature for 60 seconds	FK package		260	°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds	J or W package	300	300	°C
Storage temperature range, Tstg		−65 to 150	−65 to 150	°C

Description

These LM2902KAV consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages.Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and V_CC is at least
1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems. For example, the LM124 can be operated directly from the standard 5-V supply that is used in digital systems and provides the required interface electronics, without requiring additional ±15-V supplies.
