LM2792

Features: `Output matching of ± 0.3% (typ.)`Drives up to two LED's`3.0V to 5.8V Input Voltage`Up to 34mA output current`Soft start limits inrush current`Analog brightness control`Separate shutdown input`Very small solution size and no inductor`1.4mA typical operating current`1A (max.) shutdown cur...

product image

LM2792 Picture
See larger image
SeekIC No. : 004395060 Detail

LM2792: Features: `Output matching of ± 0.3% (typ.)`Drives up to two LED's`3.0V to 5.8V Input Voltage`Up to 34mA output current`Soft start limits inrush current`Analog brightness control`Separate shutdown i...

LM2792 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM2792
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Output matching of ± 0.3% (typ.)
`Drives up to two LED's
`3.0V to 5.8V Input Voltage
`Up to 34mA output current
`Soft start limits inrush current
`Analog brightness control
`Separate shutdown input
`Very small solution size and no inductor
`1.4mA typical operating current
`1A (max.) shutdown current
`900kHz switching frequency (min.)
`Linear regulation generates predictable noise spectrum
`LLP-10 package: 3mm X 3mm X 0.8mm


Application

·White LED Display Backlights
·White LED Keypad Backlights
·1-Cell Li-Ion battery-operated equipment including PDAs, hand-held PCs, cellular phones
·Flat Panel Dispalys


Pinout

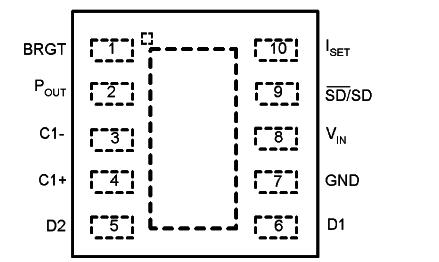

Connection Diagram


Specifications

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
VIN ...........................................................−0.3 to 6.0V
BRGT, SD .......................................−0.3 to (VIN +0.2V)
Power Dissipation (Note 2) ............................400 mW
TJMAX (Note 2) ...................................................150
JA (Note 7) .....................................................55/W
Storge Temperature.......................... −65 to +150
Lead Temp. (Soldering, 5 sec.) ...........................260
ESD Rating
Human Body Model................................................ 2KV
Machine Model .....................................................200V


Description

The LM2792 is a CMOS charge-pump voltage doubler and regulator that provides two regulated current sources. They are designed to drive two white (or blue) LEDs with matched currents (within ± 0.3%) to produce balanced light sources for display backlights. The LM2792 accepts an input voltage range from 3.0V to 5.8V and maintain a constant current determined by an external set resistor. The LM2792 delivers up to 34mA of load current to accommodate two high forward voltage (typically white) LEDs. The switching frequency is 900kHz (min.) to keep the conducted noise spectrum away from sensitive frequencies within portable RF devices.

The LM2792 offers full off to maximum current control through the BRGT pin. The output current linearly tracks the BRGT pin voltage. The LM2792 is available in active high or low shutdown versions. The shutdown pin reduces the operating current to 1A (max.).

The LM2792 is available in a 10 pin leadless leadframe (LLP) CSP package.
