LM2791

If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
V_IN ......................................................−0.3 to 6V
BRGT, SD................................. -0.3 to (V_IN +0.2V)
Power Dissipation(Note 2) ......................400 mW
T_JMAX (Note 2) .........................................150°C
_JA (Note 7)........................................... 55°C/W
Storge Temperature ..............−65°C to +100°C
Lead Temp. (Soldering, 5 sec.) .................260°C
ESD Rating
Human Body Model .......................................2KV
Machine Model ............................................200V

The LM2791 is a CMOS charge-pump voltage doubler and regulator that provides two regulated current sources. The
LM2791 is designed to drive two white (or blue) LEDs with matched currents (within ± 0.3%) to produce balanced light sources for display backlights. They accept an input voltage range from 3V to 5.8V and maintain a constant current determined by an external set resistor.

The LM2791 delivers up to 36mA of load current to accommodate two high forward voltage (typically white) LEDs. The
switching frequency is 450kHz (min.) to keep the conducted noise spectrum away from sensitive frequencies within portable RF devices.

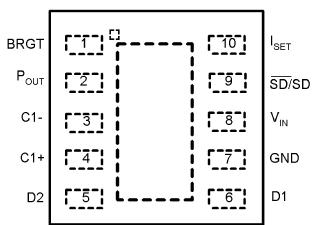

In the LM2791, brightness is controlled by applying a voltage between GND and 3.0V to the BRGT pin. The LM2791 is available in active high or low shutdown versions. The shutdown pin reduces the operating current to 1A (max.)The LM2791 is available in a 10 pin leadless leadframe (LLP) CSP package.
