Product Details

Description

Pinout

Specifications

Output Range	Vin to 24
Switch Current	2.25 Amp
Input Min Voltage	2.7 Volt
Input Max Voltage	5.5 Volt
Feedback Voltage	1.255 Volt
Frequency Max	1700, 550 kHz
Output Min	3 Volt
Output Max	24 Volt
Efficiency (peak)	90 %
Sync Pin	No
Adj Switch Frequency	No
Frequency Min	1500, 475 kHz
On/Off Pin	Yes
Error Flag	No
SoftStart	Yes
Special Features	12V eMSOP8 EXP DAP, 12V SOT23-5, SOT23-5, 12V LLP6 EXP DAP, LLP6 EXP DAP, eMSOP8 EXP DAP
Topology	Boost, Sepic, FlyBack
Step-Up	Yes
Flyback	Yes
RegType	Switching Regulator
Automotive Selection Guide	Yes
View Using Catalog

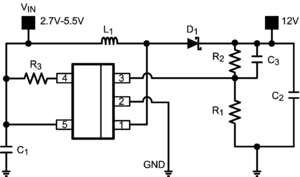

Description

The LM2735 is an easy-to-use, space-efficient 2.1A low-side switch regulator ideal for Boost and SEPIC DC-DC regulation. It provides all the active functions to provide local DC/DC conversion with fast-transient response and accurate regulation in the smallest PCB area. Switching frequency is internally set to either 520kHz or 1.6MHz, allowing the use of extremely small surface mount inductor and chip capacitors while providing efficiencies up to 90%. Current-mode control and internal compensation provide ease-of-use, minimal component count, and high-performance regulation over a wide range of operating conditions. External shutdown features an ultra-low standby current of 80 nA ideal for portable applications. Tiny SOT23-5, LLP-6, and eMSOP-8 packages provide space-savings. Additional features include internal soft-start, circuitry to reduce inrush current, pulse-by-pulse current limit, and thermal shutdown.

Reliability Metrics

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
LM2735XMF	PVIP050	0	9600	0	0	765000	5	217070838
LM2735XMFX	PVIP050	0	9600	0	0	765000	5	217070838
LM2735XMY	PVIP050	0	9600	0	0	765000	5	217070838
LM2735XMYX	PVIP050	0	9600	0	0	765000	5	217070838
LM2735XQMF	PVIP050	0	9600	0	0	765000	5	217070838
LM2735XQMFX	PVIP050	0	9600	0	0	765000	5	217070838
LM2735XSD	PVIP050	0	9600	0	0	765000	5	217070838
LM2735XSDX	PVIP050	0	9600	0	0	765000	5	217070838
LM2735YMF	PVIP050	0	9600	0	0	765000	5	217070838
LM2735YMFX	PVIP050	0	9600	0	0	765000	5	217070838
LM2735YMY	PVIP050	0	9600	0	0	765000	5	217070838
LM2735YMYX	PVIP050	0	9600	0	0	765000	5	217070838
LM2735YQMF	PVIP050	0	9600	0	0	765000	5	217070838
LM2735YQMFX	PVIP050	0	9600	0	0	765000	5	217070838
LM2735YSD	PVIP050	0	9600	0	0	765000	5	217070838
LM2735YSDX	PVIP050	0	9600	0	0	765000	5	217070838

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.

Application Notes

Title	Size in Kbytes	Date
AN-1658: Application Note 1658 LM2735 BOOST and SEPIC DC-DCRegulator	408 Kbytes	26-Jun-07	Download
AN-1658 (Japanese): Application Note 1658 LM2735 BOOST and SEPIC DC-DCRegulator 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">	620 Kbytes
AN-1658 (Chinese): Application Note 1658 LM2735 BOOST and SEPIC DC-DCRegulator	405 Kbytes		640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

Title	Size in Kbytes	Date
AN-1280: Application Note 1280 LM2731/LM2733 Evaluation Board	55 Kbytes	18-Apr-03	Download
AN-1408: Application Note 1408 Designing Power Over Ethernet Using LM5070 and DP83865	1072 Kbytes	10-Jan-06	Download
AN-1408 (Chinese): Application Note 1408 Designing Power Over Ethernet Using LM5070 and DP83865	697 Kbytes		640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1837: Application Note 1837 LM2738 Evaluation Board	799 Kbytes	10-Apr-08	Download
AN-1350: Application Note 1350 LM2734 Evaluation Board	639 Kbytes	4-Feb-05	Download
AN-1418: Application Note 1418 LM2736 Evaluation Board	858 Kbytes	26-Oct-05	Download
AN-1418 (Chinese): Application Note 1418 LM2736 Evaluation Board	279 Kbytes		640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1822: Application Note 1822 LMH6733 High Definition Video Transmission Over CAT5	691 Kbytes	14-Jan-09	Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.
