LM27262MTDX

Features: ` Compatible with VRD10 Voltage Regulation Specification for Intel Pentium 4 and Prescott Processors` Supports Intel SpeedStep™ technology (Geyserville-III™), which enables real-time dynamic switching of the CPU core voltage and the CPU clock frequency` Uses external gate d...

product image

LM27262MTDX Picture
See larger image
SeekIC No. : 004395025 Detail

LM27262MTDX: Features: ` Compatible with VRD10 Voltage Regulation Specification for Intel Pentium 4 and Prescott Processors` Supports Intel SpeedStep™ technology (Geyserville-III™), which enables r...

LM27262MTDX Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM27262MTDX
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Compatible with "VRD10 Voltage Regulation Specification" for Intel Pentium 4 and Prescott Processors
` Supports Intel SpeedStep™ technology (Geyserville-III™), which enables real-time dynamic switching of the CPU core voltage and the CPU clock frequency
` Uses external gate drivers (LM2724) for maximum layout flexibility and noise immunity
` Fixed frequency PWM architecture
` Pin selectable internal or external voltage reference
`0.5% core voltage set-point accuracy when using external voltage reference
` 0.9% accurate internal bandgap reference
` 2-, 3- or 4-phase operation
` Out-of-phase switching reduces input ripple current, thereby minimizing input capacitor requirements
` VID-code programmable output voltage range of 0.8375V through 1.6000V
` User programmable, low loss, load line slope
` User programmable Standard VID offset
` User programmable VCORE slew rate
` 5V power rail Under Voltage Lock Out (UVLO)
` Over Voltage Protection (OVP), Under Voltage Protection (UVP), and Over Current Protection (OCP) to defend against potentially catastrophic events
` User programmable fault latch that can be used to disable the regulator in the event a power system fault
` Very fast transient response
` VID-transition masked PWRGOOD output
` True-differential current sensing for each phase ensures accurate load current sharing
` User programmable cycle-by-cycle current limit


Application

·Server and desktop computer CPU core power supplies requiring a 2, 3- or 4-phase voltage regulator delivering up to 100A
· Transportable notebook computers using desktop CPUs
· Low cost transportable notebook computers using 2- or 3-phase designs


Pinout

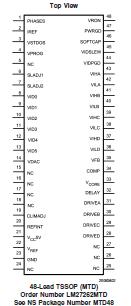

Connection Diagram


Specifications

VCC5V                                                    -0.3V to 7V
PHASES, IREF, VSTDOS,
VPROG,
SLADJ1, SLADJ2, VREF,
REFINT,
CLIMADJ, VCORE, COMP,
VFB,
VILx, VIHx, SOFTCAP,
PWRGD,
VIDPGD, VID0-VID5,
VRON                                                      -0.3V to VCC5V + 0.3V
Differential Voltage (VILx
VIHx)                                                                                     1V
Ambient Storage Temp.
Range                                                     -65 to +150
Junction Temperature                             -20 to +150
Minimum ESD Rating
(Note 4)
Human Body Model
Machine Model
                                                                ±2kV
                                                                100pF
                                                                1.5 k
Soldering Dwell Time,
Temperature (Note 3)
Wave
Infrared
Vapor Phase
                                                               4sec, 260
                                                              10sec, 240
                                                              75sec, 219


Description

The LM27262MTDX is a versatile synchronous buck voltage regulator controller designed according to the Intel VRD10 Specification.

LM27262MTDX's a fixed-frequency voltage-mode control PWM with average current modulation of the reference voltage to achieve the desired output impedance. This approach imparts a pseudo current mode behavior to the control loop.

The part provides the control for a voltage regulator consisting of either 2-, 3- or 4-phases to provide power to a desktop CPU. Pulse-by-pulse phase current balancing ensures accurate current sharing. CPU core currents of over 90A can be supported without requiring significant over design of the power path. The LM27262 contains a precision 6-bit digitalto- analog converter (DAC) that uses a VID-code provided by the CPU to program the desired CPU core voltage. The regulator output voltage can be dynamically adjusted by changing the VID-code "on the fly".

The part is intended to provide all the specified functions laid out in the VRD-10 specification, making it as simple as possible for the user to realize a fully compliant CPU core supply for Intel's Pentium™4 and Prescott™ processors.

The LM27262MTDX is available in a 48-lead TSSOP package and in a 48-lead LLP package.
