Features:

·+5V regulated output
·Inverts V05(+5V) to VNEG(−5V)
·Doubles input supply voltage
·TSSOP-14 package
·80% typical conversion efficiency at 25mA
·Input voltage range of 2.85V to 6.5V
·Independent shutdown control pins



Application

·Cellular phones
·Pagers
·PDAs
·Handheld instrumentation
·3.3V to 5V voltage conversion applications



Pinout

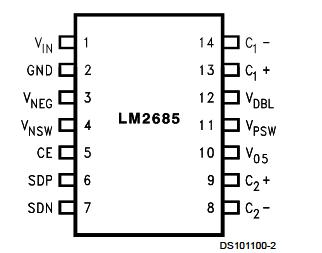

  Connection Diagram


Specifications

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (VIN to GND or
GND to VNEG)....................................................... 6.8V
SDN, SDP, CE .......................................(GND − 0.3V) to
                      ............................................(VIN + 0.3V)
V05 Continuous Output Current ..........................80mA
V05 Short-Circuit Duration to GND (Note 2) ...Indefinite
Continuous Power Dissipation (TA
= 25) (Note 3) ...............................................600mW
TJMAX (Note 3) ....................................................150
qJA (Note 3) ....................................................140/W
Operating Ambient Temp. Range............ −40 to 85
Operating Junction Temp. Range.......... −40 to 125
Storage Temp. Range ...........................−65 to 150
Lead Temp. (Soldering, 10 sec.) ..........................300
ESD Rating (Note 4) ...............................................2kV



Description

The LM2685 CMOS charge-pump voltage converter operates as an input voltage doubler, +5V regulator and inverter for an input voltage in the range of +2.85V to +6.5V. Five low cost capacitors are used in this circuit to provide up to 50mA of output current at +5V (± 5%), and 15mA at −5V. The LM2685 operates at a 130 kHz switching frequency to reduce output resistance and voltage ripple. With an operating current of only 800A (operating efficiency greater than 80% with most loads) and 6A typical shutdown current, the LM2685 is ideal for use in battery powered systems. The device is in a small 14-pin TSSOP package.
