LM2567

Features: Wide input voltage range, 5V to 15V Tight line regulation, 0.5% (typ) Output voltage tolerance ±5% Few external components required Surface-mount packaging Fixed switching frequency of 52 kHz Current-mode operation for improved transient responseApplicationPower supply for DP8392 (LAN) ...

product image

LM2567 Picture
See larger image
SeekIC No. : 004394878 Detail

LM2567: Features: Wide input voltage range, 5V to 15V Tight line regulation, 0.5% (typ) Output voltage tolerance ±5% Few external components required Surface-mount packaging Fixed switching frequency of 52...

LM2567 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM2567
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Wide input voltage range, 5V to 15V
Tight line regulation, 0.5% (typ)
Output voltage tolerance ±5%
Few external components required
Surface-mount packaging
Fixed switching frequency of 52 kHz
Current-mode operation for improved transient response


Application

 Power supply for DP8392 (LAN) coaxial transceiver: Isolated b9V output for up to 180 mA load


Pinout

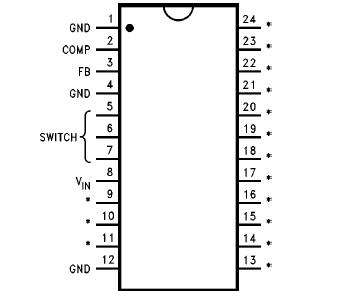

Connection Diagram


Specifications

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Supply Voltage                                                            40V
Output Switch Voltage                                                50V
Output Switch Current                                               6.0A
Power Dissipation Internally Limited
Storage Temperature Range                      -65 to -150
Lead Temperature (Soldering, 10 sec.)                     260
Maximum Junction Temperature                                150
Minimum ESD Rating (C e 100 pF, R e 1.5 kX)              2kV


Description

The LM2567 DC/DC converter is intended for use in LAN applications as a power supply for the DP8392 Coaxial Transceiver. The converter may be operated from an input voltage of 5V (±10%) to 15V. It provides an isolated output of b9V for loads of up to 180 mA, with an efficiency of 78% (typical). The few external components required for the converter are completely specified within this datasheet. Protection features for the LM2567-based DC/DC converter include thermal and current limit. Undervoltage lockout and soft-start are incorporated to minimize the inrush current during start-up.
