LM1282

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage
Pins 6, 9, and 22 ..........................................................15V
Peak Video Output Source Current
(Any One Amp) Pins 18, 20, and 23.......................... 28 mA
Voltage at Any Input Pin (VIN) ................V_CC  V_IN  GND
Power Dissipation (PD)
(Above 25°C Derate based on
qJA and TJ) .................................................................2.5W
Thermal Resistance to Ambient (JA) ...................45°C/W
Thermal Resistance to Case (JC) ........................28°C/W
Junction Temperature (TJ) ......................................150°C
ESD Susceptibility (Note 4) ..........................................2 kV
ESD Machine Model (Note 17) ....................................200V
Storage Temperature ............................−65°C to 150°C
Lead Temperature
(Soldering, 10 sec.)................................................ 265°C

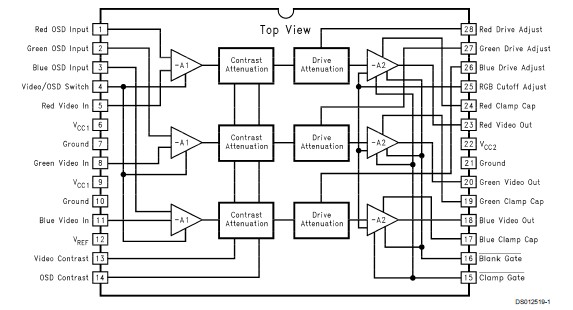

The LM1282 is a full feature video amplifier with OSD inputs, all within a 28-pin package. This part is intended for use in monitors with resolutions up to 1280 x 1024. The video section of the LM1282 features three matched video amplifiers with blanking. All of the video amplifier adjustments feature high input impedance 0V to 4V DC controls, providing easy interfacing to bus controlled alignment systems. The OSD section features three TTL inputs and a DC contrast control. The switching between the OSD and video section is controlled by a single TTL input. Although the OSD signals are TTL inputs, these signals are internally processed to match the OSD logic low level to the video black level. When adjusting the drive controls for color balance of the video signal, the color balance of the OSD display will track these color adjustments. The LM1282 also features an internal spot killer circuit to protect the CRT when the monitor is turned off. For applications without OSD insertion please refer to the LM1205 or LM1208 data sheets.
