Product Details

Description



Features:

·16×32 dot matrix Circular emitters : 2.0 mm diameter
· External dimensions: 39.9×79.9×6.2 mm
·Black package.




Application

The LM-2512 series are a 16×32 matrix display which can be used in a wide variety of applications, including alphabet, numeric, symbol, and graphic displays. Dual-color red / green is available.




Pinout

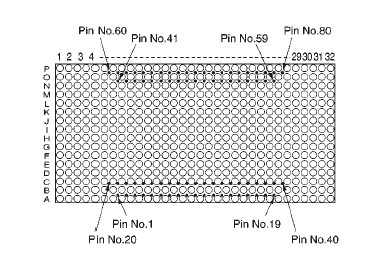

Connection Diagram


Specifications

parameter
Symbol
MUC
Unit
Red
Green
power dissipation
PD
2.69
2.69
W
Forward current
lF
15
15
mA
Peak forward current
lFP
60*
60*
mA
Reverse voltage
VR
4
4
V
Operating temperature
Topr
-20~+50
Storage temperature
Tstg
-25~+75

* Pulse width 1msec duty 1/16
