LIS3L02DQ

Sensing Axis : X, Y, Z
Output Type : Digital
Supply Voltage - Max : 3.6 V
Packaging : Tray
Digital Output - Number of Bits : 12 bit
Maximum Operating Temperature : + 70 C
Acceleration : 2 g
Sensitivity : 1024 LSB/g
Supply Current : 1 mA
Minimum Operating Temperature : - 20 C
Supply Voltage - Min : 2.7 V
Package / Case : QFN-44


Features:

·2.7V TO 3.6V SINGLE SUPPLY OPERATION
· 1.8V COMPATIBLE IOs
·I ²C/SPI DIGITAL OUTPUT INTERFACES
· MOTION ACTIVATED INTERRUPT SOURCE
· FACTORY TRIMMED DEVICE SENSITIVITY AND OFFSET
· EMBEDDED SELF TEST
· HIGH SHOCK SURVIVABILITY

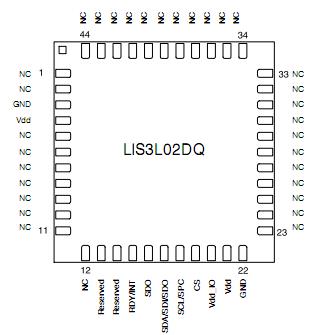

Pinout




Specifications

Stresses above those listed as "absolute maximum ratings" may cause permanent damage This is a stress rating only and functional operation of the device under these conditions is Exposure to maximum rating conditions for extended periods may affect device reliability.

Symbol	Ratings	Maximum Value	Unit
Vdd	Supply voltage	-0.3 to 6	V
Vdd_IO	I/O pads Supply voltage	-0.3 to Vdd +0.1	V
Vin	Input voltage on any control pin (CS, SCL/SPC, SDA/SDI/SDO, SDO, RDY/INT)	Vss -0.3 to Vdd +0.3
			V
APOW	Acceleration (Any axis, Powered, Vdd=3.3V)	3000g for 0.5 ms
AUNP	Acceleration (Any axis, Unpowered)	3000g for 0.5 ms
TOP	Operating Temperature Range	-20 to +70
TSTG	Storage Temperature Range	-40 to +105

Description

The LIS3L02DQ is a tri-axis digital output linear accelerometer that includes a sensing element and an IC interface able to take the information from the sensing element and to provide the mea- sured acceleration signals to the external world through an I 2C/SPI serial interface.

The sensing element, capable to detect the accel- eration, is manufactured using a dedicated pro- cess called THELMA (Thick Epi-Poly Layer for Microactuators and Accelerometers) developed by ST to produce inertial sensors and actuators in silicon.

The IC interface instead is manufactured using a CMOS process that allows high level of integration to design a dedicated circuit which is factory trimmed to better match the sensing element char- acteristics.

The LIS3L02DQ is capable of measuring acceler- ations over a maximum bandwidth of 2.0 KHz for the X, Y axis and Z axis. The device bandwidth may be selected accordingly to the application re- quirements. A self-test capability allows the user to check the functioning of the system.

The device may be configured to generate an iner- tial wake-up/interrupt signal when a programma- ble acceleration threshold is exceeded along one of the three axis.

The LIS3L02DQ is available in plastic SMD pack- age and it is specified over a temperature range extending from -20°C to +70°C. The LIS3L02DQ belongs to a family of products suitable for a variety of applications:
    Motion activated functions in mobile terminals
    Antitheft systems and Inertial navigation
    Gaming and Virtual Reality input devices
    Vibration Monitoring and Compensation
