LIS3L02AQ3

Digital Output - Number of Bits :
Sensing Axis : X, Y, Z
Supply Voltage - Max : 3.6 V
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Packaging : Tray
Supply Voltage - Min : 2.4 V
Output Type : Analog - Voltage
Acceleration : 2 g, 6 g
Sensitivity : 500 mV/g, 15000 mV/g
Package / Case : QFPN-44
Supply Current : 0.85 mA


Features:

· 2.4V TO 3.6V SINGLE SUPPLY OPERATION
· LOW POWER CONSUMPTION
· ±2g/±6g USER SELECTABLE FULL-SCALE
· BETTER THAN 0.5mg RESOLUTION OVER 100Hz BANDWIDTH
· EMBEDDED SELF TEST AND POWER DOWN
· OUTPUT VOLTAGE, OFFSET AND SENSITIVITY RATIOMETRIC TO THE SUPPLY VOLTAGE
· HIGH SHOCK SURVIVABILITY
· ECO-PACK COMPLIANT

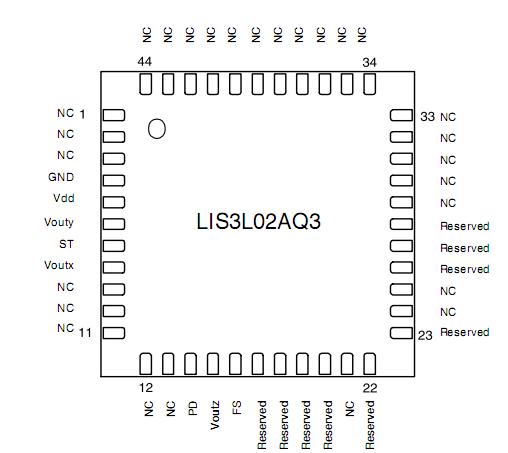

Pinout




Specifications

Absolute Maximum Rating
Stresses above those listed as "absolute maximum ratings" may cause permanent damage to the device. This
is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to
maximum rating conditions for extended periods may affect device reliability.

Symbol	Ratings	Maximum Value	Unit
Vdd	Supply voltage	-0.3 to 7	V
Vin	Input Voltage on Any Control pin (FS, PD, ST)	-0.3 to Vdd +0.3	V
APOW	Acceleration (Any axis, Powered, Vdd=3.3V)	3000g for 0.5 ms
		10000g for 0.1 ms
AUNP	Acceleration (Any axis, Not powered)	3000g for 0.5 ms
		10000g for 0.1 ms
TSTG	Storage Temperature Range	-40 to +125
ESD	Electrostatic Discharge Protection	2KV HBM
		200V MM
		1500V CDM

Description

The LIS3L02AQ3 is a low-power 3-Axis linear capac- itive accelerometer that includes a sensing element and an IC interface able to take the information from the sensing element and to provide an analog signal to the external world.

The sensing element, capable of detecting the accel- eration, is manufactured using a dedicated process developed by ST to produce inertial sensors and ac- tuators in silicon.

The IC interface is manufactured using a standard CMOS process that allows high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

The LIS3L02AQ3 has a user selectable full scale of ±2g, ±6g and it is capable of measuring accelerations over a bandwidth of 1.5 KHz for all axes. The device bandwidth may be reduced by using external capac- itances. A self-test capability allows to check the me- chanical and electrical signal path of the sensor.

The LIS3L02AQ3 is available in plastic SMD pack- age and it is specified over an extended temperature range of -40 to +85.

The LIS3L02AQ3 belongs to a family of products suitable for a variety of applications:
    Mobile terminals
    Gaming and Virtual Reality input devices
    Free-fall detection for data protection
    Antitheft systems and Inertial Navigation
    Appliance and Robotics

Parameters:

Technical/Catalog Information	LIS3L02AQ3
Vendor	STMicroelectronics
Category	Sensors, Transducers
Acceleration Range	±2g, 6g
Voltage Rating	2.4 ~ 3.6V
Sensitivity	Vdd/5, Vdd/15 = V/g
Features	High Shock Survivability
Package / Case	44-QFN
Axis	Three
Interface	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LIS3L02AQ3 LIS3L02AQ3
