LIS2L02AQ

Output Type: Analog
Mounting Type: Surface Mount
Series: -
Axis: X, Y
Manufacturer: STMicroelectronics
Interface: IC
Acceleration Range: ±2g, 6g
Bandwidth: 4kHz
Sensitivity: Vdd/5, Vdd/15 = V/g
Voltage - Supply: 2.4 V ~ 5.25 V
Package / Case: 44-QFN
Supplier Device Package: 44-QFN-EP (7x7)


Features:

·3V TO 5.25V SINGLE SUPPLY OPERATION
· THE SENSITIVITY IS ADJUSTED WITH A TOTAL ACCURACY OF ±10%
· THE OUTPUT VOLTAGE, OFFSET, SENSITIVITY AND TEST VOLTAGE ARE RATIOMETRIC TO THE SUPPLY VOLTAGE
· DEVICE SENSITIVITY IS ON-CHIP FACTORY TRIMMED
· EMBEDDED SELF TEST
· HIGH SHOCK SURVIVABILITY

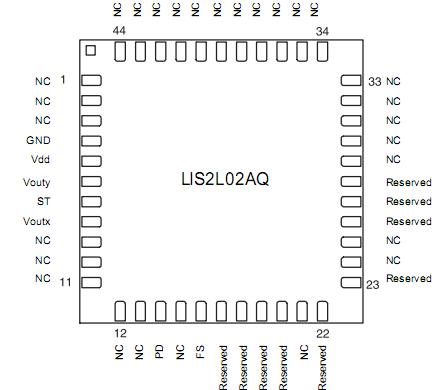

Pinout




Description

The LIS2L02AQ is a dual-axis linear accelerometer that includes a sensing element and an IC interface able to take the information from the sensing element and to provide an analog signal to the external world.

The sensing element, capable to detect the acceler- ation, is manufactured using a dedicated process called THELMA (Thick Epi-Poly Layer for Microactu- ators and Accelerometers) developed by ST to pro- duce inertial sensors and actuators in silicon.

The IC interface instead is manufactured using a CMOS process that allows high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

The LIS2L02AQ has a user selectable full scale of 2g, 6g and it is capable of measuring accelerations over a maximum bandwidth of 4.0 KHz for both the X and Y axis. The device bandwidth may be reduced by using external capacitances. A self-test capability al- lows the user to check the functioning of the system.

The LIS2L02AQ is available in plastic SMD package and it is specified over a temperature range extend- ing from -40 to +85 . The LIS2L02AQ belongs to a family of products suit- able for a variety of applications:
    Antitheft systems
    Inertial navigation
   Virtual reality input devices
   Vibration Monitoring, recording and compen- sation
   Appliance control
    Robotics

Parameters:

Technical/Catalog Information	LIS2L02AQ
Vendor	STMicroelectronics
Category	Sensors, Transducers
Acceleration Range	±2g, 6g
Voltage Rating	3.3V
Sensitivity	220/660mV/g
Features	High Shock Survivability
Package / Case	44-QFN
Axis	Two
Interface	Analog
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LIS2L02AQ LIS2L02AQ 497 4025 ND 4974025ND 497-4025
