LH75401

Features: • Highly Integrated System-on-Chip• ARM7TDMI-S™ Core• High Performance (70 MHz CPU Speed) Internal PLL Driven or External Clock Driven Crystal Oscillator/Internal PLL Can Operate with Input Frequency Range of 14 MHz to 20 MHz• 32KB On-chip SRAM 16KB Tightly ...

product image

LH75401 Picture
See larger image
SeekIC No. : 004394244 Detail

LH75401: Features: • Highly Integrated System-on-Chip• ARM7TDMI-S™ Core• High Performance (70 MHz CPU Speed) Internal PLL Driven or External Clock Driven Crystal Oscillator/Internal P...

LH75401 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LH75401
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Highly Integrated System-on-Chip
• ARM7TDMI-S™ Core
• High Performance (70 MHz CPU Speed)
Internal PLL Driven or External Clock Driven
Crystal Oscillator/Internal PLL Can Operate with Input Frequency Range of 14 MHz to 20 MHz
• 32KB On-chip SRAM
16KB Tightly Coupled Memory (TCM) SRAM
16KB Internal SRAM
• Clock and Power Management
Low Power Modes: Standby, Sleep, Stop
• Eight Channel, 10-bit Analog-to-Digital Converter
• Integrated Touch Screen Controller
• Serial interfaces
Two 16C550-type UARTs supporting baud rates up to 921,600 baud (requires crystal frequency of 14.756 MHz).
One 82510-type UART supporting baud rates up to 3,225,600 baud (requires a system clock of 70 MHz).
• Synchronous Serial Port
Motorola SPI™
National Semiconductor Microwire™
Texas Instruments SSI
• Real-Time Clock (RTC)
• Three Counter/Timers
Capture/Compare/PWM Compatibility
Watchdog Timer (WDT)
• Low-Voltage Detector
• JTAG Debug Interface and Boundary Scan
• Single 3.3 V Supply
• 5 V Tolerant Inputs
• 144-pin LQFP Package
• -40°C to +85°C Operating Temperature


Pinout

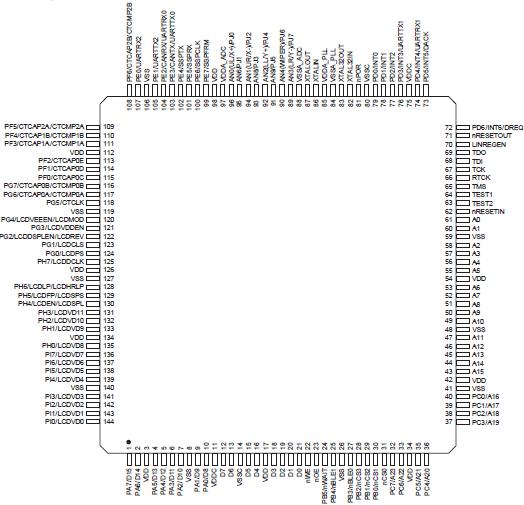

Connection Diagram


Specifications

PARAMETER
MINIMUM
MAXIMUM
DC Core Supply Voltage (VDDC)
-0.3 V
2.4 V
DC I/O Supply Voltage (VDD)
-0.3 V
4.6 V
DC Analog Supply Voltage for ADC (VDDA0)
-0.3 V
4.6 V
DC Analog Supply Voltage for PLL (VDDA1)
-0.3 V
2.4 V
Storage Temperature (TSTG)
-55°C
125°C



Description

The SHARP BlueStreak LH75400/01/10/11 family consists of four low-cost 16/32-bit System-on-Chip (SoC) devices.
• LH75401 - contains the superset of features.
• LH75411 - similar to LH75401, without CAN 2.0B.
• LH75400 - similar to LH75401, but with a Grayscale LCDC only.
• LH75410 - similar to LH75400, without CAN 2.0B.
