LH543601

` Fast Cycle Times: 20/25/30/35 ns
` Pin-Compatible and Functionally-Compatible 0.7m-Technology Replacement for Sharp LH5420
` Two 256 *36-bit FIFO Buffers
` Full 36-bit Word Width
` Selectable 36/18/9-bit Word Width on Port B
` Independently-Synchronized ('Fully-Asynchronous') Operation of Port A and Port B
` 'Synchronous' Enable-Plus-Clock Control at Both Ports
` R/W, Enable, Request, and Address Control Inputs are Sampled on the Rising Clock Edge
` Synchronous Request/Acknowledge 'Handshake' Capability; Use is Optional
` Device Comes Up Into a Known Default State at Reset; Programming is Allowed, but is not Required
` Asynchronous Output Enables
` Five Status Flags per Port: Full, Almost-Full, Half-Full, Almost-Empty, and Empty
` Almost-Full Flag and Almost-Empty Flag are Programmable
` Mailbox Registers with Synchronized Flags
` Data-Bypass Function
` Data-Retransmit Function
` Automatic Byte Parity Checking
` 8 mA-IOL High-Drive Three-State Outputs with Built-In Series Resistor
` TTL/CMOS-Compatible I/O
` Space-Saving PQFP and TQFP Packages
` PQFP to PGA Package Conversion ¹

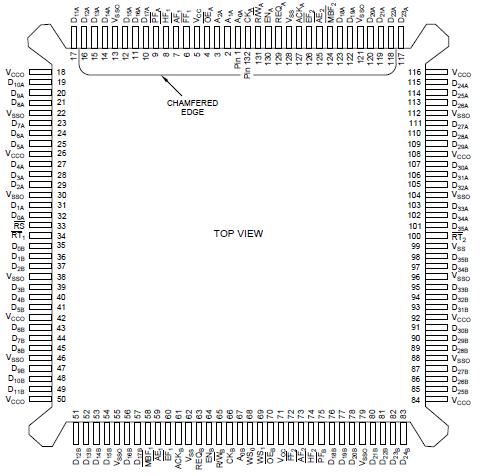

The LH543601 contains two FIFO buffers, FIFO #1 and FIFO #2. These operate in parallel, but in opposite directions, for bidirectional data buffering. FIFO #1 and FIFO #2 each are organized as 256 by 36 bits. The LH543601 is ideal either for wide unidirectional applications or for bidirectional data applications; component count and board area are reduced.

The LH543601 has two 36-bit ports, Port A and Port B. Each port has its own port-synchronous clock, but the two ports may operate asynchronously relative to each other. Data flow is initiated at a port by the rising edge of the appropriate clock; it is gated by the corresponding edgesampled enable, request, and read/write control signals.

At the maximum operating frequency, the clock duty cycle may vary from 40% to 60%. At lower frequencies, the clock waveform may be quite asymmetric, as long as the minimum pulse-width conditions for clock-HIGH and clock-LOW remain satisfied; the LH543601 is a fully-static part.

Conceptually, the port clocks CKA and CKB are freerunning, periodic 'clock' waveforms, used to control other signals which are edge-sensitive. However, there actually is not any absolute requirement that these 'clock' waveforms must be periodic. An 'asynchronous' mode of operation is possible, in one or both directions, independently, if the appropriate enable and request inputs are continuously asserted, and enough aperiodic 'clock' pulses of suitable duration are generated by external logic to cause all necessary actions to occur.

A synchronous request/acknowledge handshake facility is provided at each port for FIFO data access. This request/ acknowledge handshake resolves FIFO full and empty boundary conditions, when the two ports are operated asynchronously relative to each other.

FIFO status flags monitor the extent to which each FIFO buffer has been filled. Full, Almost-Full, Half-Full, Almost-Empty, and Empty flags are included for each FIFO. The Almost-Full and Almost-Empty flags are programmable over the entire FIFO depth, but are automatically  initialized to eight locations from the respective FIFO boundaries at reset. A data block of 256 or fewer words may be retransmitted any desired number of times.
