LH540245

Features: ` Fast Cycle Times: 20/25/35 ns` Pin-Compatible Drop-In Replacements for IDT72235B/45B FIFOs` Choice of IDT-Compatible or Enhanced Operating Mode; Selected by an Input Control Signal` Device Comes Up into One of Two Known Default States at Reset Depending on the State of the EMODE Contro...

product image

LH540245 Picture
See larger image
SeekIC No. : 004394223 Detail

LH540245: Features: ` Fast Cycle Times: 20/25/35 ns` Pin-Compatible Drop-In Replacements for IDT72235B/45B FIFOs` Choice of IDT-Compatible or Enhanced Operating Mode; Selected by an Input Control Signal` Devi...

LH540245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LH540245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Fast Cycle Times: 20/25/35 ns
` Pin-Compatible Drop-In Replacements for IDT72235B/45B FIFOs
` Choice of IDT-Compatible or Enhanced Operating Mode; Selected by an Input Control Signal
` Device Comes Up into One of Two Known Default States at Reset Depending on the State of the EMODE Control Input: Programming is Allowed, but is not Required
` Internal Memory Array Architecture Based on CMOS Dual-Port SRAM Technology, 2048*18 or 4096 *18
` 'Synchronous' Enable-Plus-Clock Control at Both Input Port and Output Port
` Independently-Synchronized Operation of Input Port and Output Port
` Control Inputs Sampled on Rising Clock Edge
` Most Control Signals Assertive-LOW for Noise Immunity
` May be Cascaded for Increased Depth, or Paralleled for Increased Width
` 16 mA-IOL High-Drive Three-State Outputs
` Five Status Flags: Full, Almost-Full, Half-Full, Almost-Empty, and Empty; 'Almost' Flags are Programmable
` In Enhanced Operating Mode, Almost-Full, Half-Full, and Almost-Empty Flags can be Made Completely Synchronous
` In Enhanced Operating Mode, Duplicate Enables for Interlocked Paralleled FIFO Operation, for 36-Bit Data Width, when Selected and Appropriately Connected
` In Enhanced Operating Mode, Disabling Three-State Outputs May be Made to Suppress Reading
` Data Retransmit Function
` TTL/CMOS-Compatible I/O
` Space-Saving 68-Pin PLCC Package; Even-Smaller 64-Pin TQFP Package


Pinout

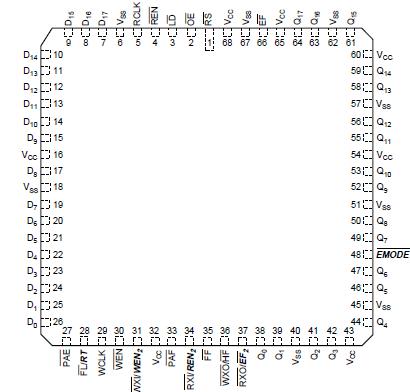

Connection Diagram


Specifications

PARAMETER RATING
Supply Voltage to VSS Potential 0.5 V to 7 V
Signal Pin Voltage to VSS Potential 0.5 V to VCC + 0.5 V
DC Output Current1 ±75 mA

Temperature Range with Power Applied 2		 65 to 125
Storage Temperature Range 65 to 150
Power Dissipation (Package Limit) 2.5 W

NOTES:
1. Only one output may be shorted at a time, for a period not exceeding 30 seconds.
2. Measured with clocks idle.






Description

Throughout this data sheet, a BOLD ITALIC type font is used for all references to Enhanced Operating Mode features which do not function in IDT-Compatible Operating Mode; and also for all references to the retransmit facility (which is not an LH540245 FIFO feature), even though it may be used subject to some restrictions in either of these two operating modes. Thus, readers interested only in using the LH540245 FIFOs in IDT-Compatible Operating Mode may skip over BOLD ITALIC sections, if they wish.
