LH540225

` Fast Cycle Times: 20/25/35 ns
` Pin-Compatible Drop-In Replacements for IDT72215B/25B FIFOs
` Choice of IDT-Compatible or Enhanced Operating Mode; Selected by an Input Control Signal
` Device Comes Up into One of Two Known Default States at Reset Depending on the State of the EMODE Control Input: Programming is Allowed, but is not Required
` Internal Memory Array Architecture Based on CMOS Dual-Port SRAM Technology, 512 *18 or 1024 *18
` 'Synchronous' Enable-Plus-Clock Control at Both Input Port and Output Port
` Independently-Synchronized Operation of Input Port and Output Port
` Control Inputs Sampled on Rising Clock Edge
` Most Control Signals Assertive-LOW for Noise Immunity
` May be Cascaded for Increased Depth, or Paralleled for Increased Width
` Five Status Flags: Full, Almost-Full, Half-Full, Almost-Empty, and Empty; 'Almost' Flags are Programmable
` In Enhanced Operating Mode, Almost-Full, Half-Full, and Almost-Empty Flags can be Made Completely Synchronous
` In Enhanced Operating Mode, Duplicate Enables for Interlocked Paralleled FIFO Operation, for 36-Bit Data Width, when Selected and Appropriately Connected
` In Enhanced Operating Mode, Disabling Three-State Outputs May be Made to Suppress Reading
` Data Retransmit Function
` TTL/CMOS-Compatible I/O

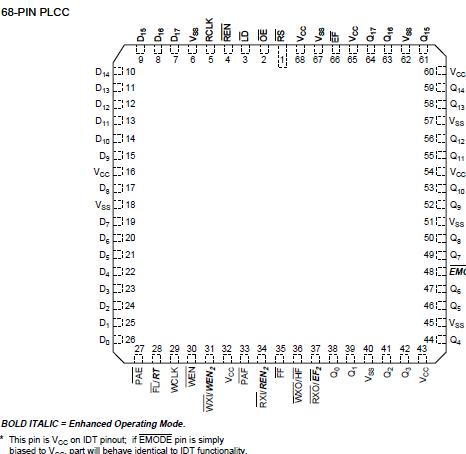

` Space-Saving 68-Pin PLCC Package, and 64-Pin TQFP Package

NOTES:
1. Only one output may be shorted at a time, for a period not exceeding 30 seconds.
2. Measured with clocks idle.

Throughout this data sheet, a BOLD ITALIC type font is used for all references to Enhanced Operating Mode features which do not function in IDT-Compatible Operating Mode; and also for all references to the retransmit facility (which is not an LH540225 FIFO feature), even though it may be used subject to some restrictions in either of these two operating modes. Thus, readers interested only in using the LH540225 FIFOs in IDT-Compatible Operating Mode may skip over BOLD ITALIC sections, if they wish.
