Features:

` Number of LCD drive outputs : 240
` LCD drive output sequence :
    Output shift direction can be selected
    OG1/OG240 or OG240/OG1
` Cascade connection :
    Max. 2 cascades (internal counting system)
` Usable with both positive/negative power supplies
` Output mode selection
    - Normal mode (1-pulse scanning)
    - Continuous 2-pulse mode (2-pulse scanning)
    - Jumping 2-pulse mode (2-pulse scanning)
` LCD drive voltage : +16.0 to +33.0 V
` Operating temperature : -30 to +85
` Package : 258-pin TCP (Tape Carrier Package)

Pinout

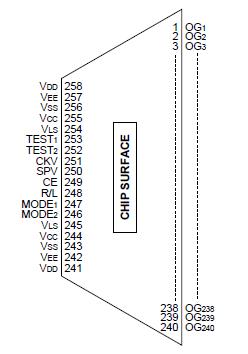

Connection Diagram

Specifications

When connecting or disconnecting the power, this IC must be used within the range of the absolute maximum ratings.

Description

The LH1691 is a 240-output TFT-LCD gate driver IC.
