LH168P

`Selectable number of LCD drive outputs : 309/300
` Built-in 6-bit digital input DAC
` Possible to display 262 144 colors in 64 gray scales with reference voltage input of 11 gray scales : This reference voltage input corresponds to  correction and intermediate reference voltage
input can be abbreviated
` Cascade connection
`Sampling sequence :
    Output shift direction can be selected
    XO<sub>1</sub>, YO<sub>1</sub>, ZO<sub>1</sub>XO<sub>103</sub>, YO<sub>103</sub>, ZO<sub>103</sub> or ZO<sub>103</sub>, YO<sub>103</sub>, XO<sub>103</sub>ZO<sub>1</sub>, YO<sub>1</sub>, XO<sub>1</sub>
` Shift clock frequency : 55 MHz (MAX.)
` Supply voltages
    -VCC (for logic system) : +3.0 to +5.5 V
    - VLS (for LCD drive system) : +3.0 to +5.5 V

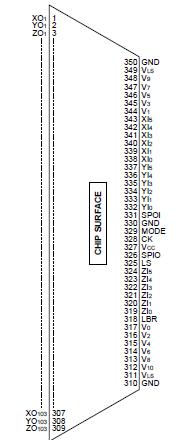

` Package : 350-pin TCP (Tape Carrier Package)

When connecting or disconnecting the power supply, this IC must be used within the range of the absolute maximum ratings.

The LH168P is a 309-output TFT-LCD source driver IC which can simultaneously display 262 144 colors in 64 gray scales.
