LH168M

Features: `Number of LCD drive outputs : 384` Built-in 6-bit digital input DAC` Dot-inversion drive : Outputs the inverted gray scale voltages between LCD drive pins next to each other` RSDSTM*( Reduced Swing Differential Signaling) input interface (Data and CK) : Possible to educe Electro-Mgnetic...

product image

LH168M Picture
See larger image
SeekIC No. : 004394105 Detail

LH168M: Features: `Number of LCD drive outputs : 384` Built-in 6-bit digital input DAC` Dot-inversion drive : Outputs the inverted gray scale voltages between LCD drive pins next to each other` RSDSTM*( Red...

LH168M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LH168M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Number of LCD drive outputs : 384
` Built-in 6-bit digital input DAC
` Dot-inversion drive : Outputs the inverted gray scale voltages between LCD drive pins next to each other
` RSDSTM*( Reduced Swing Differential Signaling) input interface (Data and CK) : Possible to  educe Electro-Mgnetic I nterference (EMI)
` Possible to display 262 144 colors in 64 gray scales with reference voltage input of 18 gray scales : This reference voltage input corresponds to correction and intermediate reference voltage input can be abbreviated
` Cascade connection
` Sampling sequence :
    Output shift direction can be selected
    XO1, YO1, ZO1XO128, YO128, ZO128 or ZO128, YO128, XO128ZO1, YO1, XO1
` Shift clock frequency : 68 MHz (MAX.)
` Supply voltages
    - VCC (for logic system) : +3.0 to +3.6 V
    - VLS (for LCD drive system) : +12 V (MAX.)
` Package : 434-pin TCP (Tape Carrier Package)


Pinout

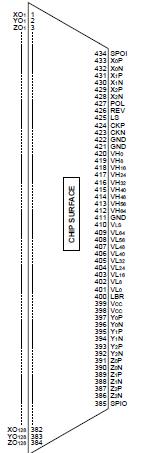

Connection Diagram


Specifications

When connecting or disconnecting the power upply, this IC must be used within the range of the bsolute maximum ratings.




Description

The LH168M is a 384-output TFT-LCD source driver IC which can simultaneously display 262 144 colors in 64 gray scales.
