LH168K

` Selectable number of LCD drive outputs : 324/321/312/309
` Built-in 6-bit digital input DAC
` Dot-inversion drive : Outputs the inverted gray scale voltages between LCD drive pins next to each other
` 2-port input for each circuit of data inputs R, G and B, and it is possible to sample and hold display data of two pixels at the same time at 324-output and 312-output modes. 1-port input for each circuit of data inputs R, G and B at 321- output and 309-output modes.
` Possible to display 262 144 colors in 64 gray scales with reference voltage input of 18 gray scales : This reference voltage input corresponds to  correction and intermediate reference voltage input can be abbreviated
` Cascade connection
` Sampling sequence :
    Output shift direction can be selected
    XO<sub>1</sub>, YO<sub>1</sub>, ZO<sub>1</sub>XO<sub>108</sub>, YO<sub>108</sub>, ZO<sub>108</sub> or
    ZO<sub>108</sub>, YO<sub>108</sub>, XO<sub>108</sub>ZO<sub>1</sub>, YO<sub>1</sub>, XO<sub>1</sub>
`Shift clock frequency : 55 MHz (MAX.)
` Supply voltages
    - VCC (for logic system) : +2.7 to +3.6 V
    - VLS (for LCD drive system) : +12 V (MAX.)

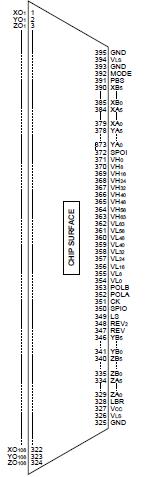

` Package : 395-pin TCP (Tape Carrier Package

When connecting or disconnecting the power supply, this IC must be used within the range of the absolute maximum ratings.

The LH168K is a 324-output TFT-LCD source driver IC which can simultaneously display 262 144 colors in 64 gray scales.
