SeekIC No. : 003447028 Detail

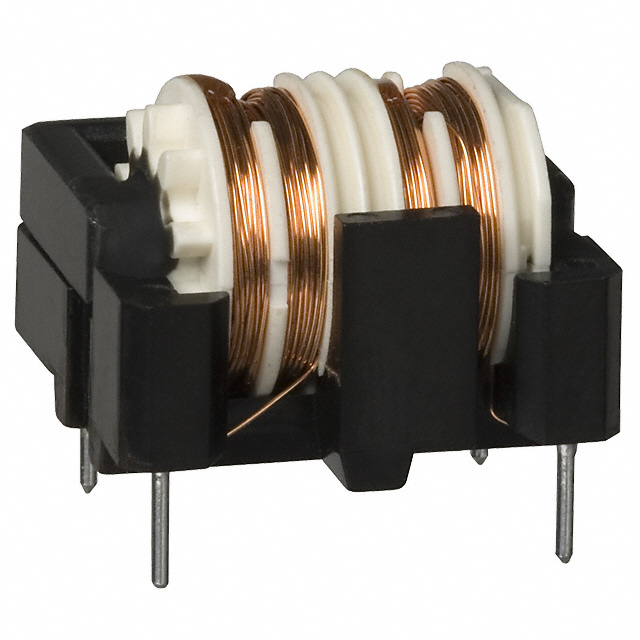

LF2115NP-183: CHOKE COMMON MODE 18MH PC MNT

LF2115NP-183 Data Sheet

US $ 1.12~1.12 / Piece | Get Latest Price

Part Number:: LF2115NP-183
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~3000

Unit Price
$1.12

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LF211 evaluate
Features: ·Eliminates input current errors·Interchangeable with LM111·No need for input current bu...
LF2111E00 evaluate
US $310.27 - 327.5 / Piece

General Purpose / Industrial Relays LF RELAY
LF2111F00 evaluate
US $439.88 - 465.76 / Piece

General Purpose / Industrial Relays LF RELAY

Product Details

Quick Details

Series:	LF	Manufacturer:	SUMIDA AMERICA COMPONENTS INC
Filter Type:	Power Line	Number of Lines:	2
Inductance:	18mH	Current:	500mA
DC Resistance (DCR):	1.63 Ohm Max	Impedance:	-
Mounting Type:	Through Hole	Size / Dimension:	0.827" L x 0.827" W (21.00mm x 21.00mm)
Maximum Operating Temperature :	85 C	Height (Max):	0.669" (17.00mm)
Package / Case:	Vertical, 4 PC Pin	Operating Temperature:	-

Description

Number of Lines: 2
Current: 500mA
Operating Temperature: -
Filter Type: Power Line
Impedance: -
Mounting Type: Through Hole
Package / Case: Vertical, 4 PC Pin
Packaging: Bulk
Inductance: 18mH
Height (Max): 0.669" (17.00mm)
Manufacturer: SUMIDA AMERICA COMPONENTS INC
Size / Dimension: 0.827" L x 0.827" W (21.00mm x 21.00mm)
Series: LF
DC Resistance (DCR): 1.63 Ohm Max

Parameters:

Technical/Catalog Information	LF2115NP-183
Vendor	SUMIDA AMERICA COMPONENTS INC
Category	Filters
Inductance	18mH
Impedance	-
DC Resistance (DCR)	1.630 Ohm Max
Current	500mA
Filter Type	Common Mode - 2 Line Array
Mounting Type	Through Hole
Package / Case	0.827" L x 0.866" W x 0.669" H (21.00mm x 22.00mm x 17.00mm)
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LF2115NP 183 LF2115NP183 308 1356 ND 3081356ND 308-1356
