Product Details

Description



Features:

VERY LOW DROPOUT VOLTAGE (TYP. 0.4 AT 1.5A)
GUARANTEED OUTPUT CURRENT UP TO 1.5A
FIXED AND ADJUSTABLE OUTPUT VOLTAGE (±1% AT 25°C)
INTERNAL CURRENT AND THERMAL LIMIT
 LOGIC CONTROLLED ELECTRONIC SHUTDOWN AVAILABLE IN PPAK


Pinout

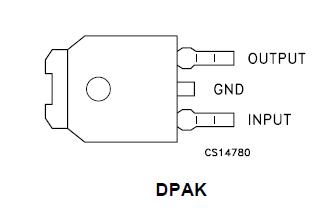

Connection Diagram


Specifications

Symbol
 Parameter2
Value
Unit
VI
 DC Input Voltage
30(*)
V
IO
 Output Current
Internally Limited
mA
PD
 Power Dissipation
Internally Limited
mW
Tstg
 Storage Temperature Range
-55 to +150
°C
Top
 Operating Junction Temperature Range
-40 to +125
°C



Description

The LD29150 is a high current, high accuracy, low-dropout voltage regulator series. These regulators feature 400mV dropout voltage and very low ground current. Designed for high current loads, the LD29150 is also used in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. Typical applications are in Power supply switching post regulation, Series power supply for monitors, Series power supply for VCRs and TVs, Computer Systems and Battery powered systems.
