Features:

• High speed programmable dividers
- FMIN: 10 to 120 MHz ..........pulse swallower (built-in divide-by-two prescaler), VDD ³ 2.7 V 10 to 130 MHz ..........pulse swallower (built-in divide-by-two prescaler), VDD ³ 3.0 V
- AMIN: 2 to 40 MHz ..............pulse swallower 0.5 to 10 MHz ...........direct division
• IF counter
- IFIN: 0.4 to 12 MHz ...........AM/FM IF counter
• Reference frequencies
- Twelve selectable frequencies (4.5 or 7.2 MHz crystal) 1, 3, 5, 9, 10, 3.125, 6.25, 12.5, 15, 25, 50 and 100 kHz
• Phase comparator
- Dead zone control
- Unlock detection circuit
- Deadlock clear circuit
• Built-in MOS transistor for forming an active low-pass filter
• I/O ports
- Dedicated output ports: 4
- Input or output ports: 2
- Support clock time base output
• Serial data I/O
- Support CCB format communication with the system controller.
• Operating ranges
- Supply voltage........................2.7 to 3.6 V
- Operating temperature............20 to +70°C
• Package MFP20 SSOP20


Pinout

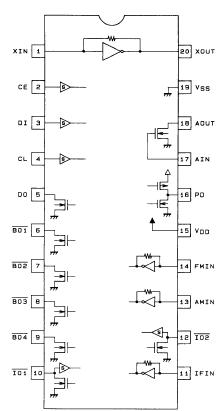

Connection Diagram


Specifications

Parameter Symbol Pins Ratings Unit
Supply voltage VDD max VDD 0.3 to +5.5 V
Maximum input voltage VIN1 max
VIN2 max
VIN3 max		 CE, CL, DI, AIN
XIN, FMIN, AMIN, IFIN
IO1,IO2		 0.3 to +5.5
0.3 to VDD + 0.3
0.3 to +15		 V
Maximum output voltage VO1 max
VO2 max
VO3 max		 DO
XOUT, PD
BO1 to BO4, IO1, IO2, AOUT		 0.3 to +5.5
0.3 to VDD + 0.3
0.3 to +15		 V
Maximum output current IO1 max
IO2 max
IO3 max		 BO1
AOUT, DO
BO2 to BO4, IO1, IO2		 0 to 3.0
0 to 6.0
0 to 6.0		 mA
Allowable power dissipation Pd max Ta 70°C: LC72133M
Ta 70°C: LC72133V		 180
160
mW
Operating temperature Topr   20 to +70 °C
Storage temperature Tstg   40 to +125 °C
