LCP02-150M

Polarity :
Clamping Voltage :
Breakdown Voltage :
Minimum Operating Temperature :
Maximum Operating Temperature :
Channels : 2 Channels
Packaging : Tube
Capacitance : 150 pF
Operating Voltage : 95 V
Package / Case : PowerSO-10
Series : LCP02-150M


Features:

Protection IC recommended for ringing SLICs.
Wide firing voltage range: from -110V to +95V.
Low gate triggering current
Peak pulse current: I_PP = 100A (10/1000s) .
Holding current: I_H = 150mA min.
High power dissipation capability
 UL497B approved (file E136224)


Application

Dual battery supply voltage SLICs
- negative battery supply configuration
- negative & positive battery supply configuration
Central Office (CO)
Private Branch Exchange (PBX)
Digital Loop Carrier (DLC)
Asymmetrical Digital Subscriber Line (ADSL)
Fiber in the Loop (FITL)
Wireless Local Loop (WLL)
Hybrid Fiber Coax (HFC)
ISDN Terminal Adapter
 Cable modem

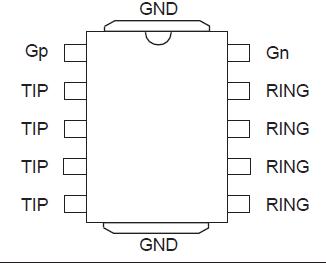

Pinout




Specifications

Symbol	Parameter		Value	Unit
IPP	Peak pulse current (see note1)	10/1000ms 8/20s 10/560s 5/310ms 10/160s 1/20s 2/10ms	15 60 20 25 30 60 70	A
ITSM	Non repetitive surge peak on-state current (sinusoidal)	t = 0.2 s t = 1s t = 15 min	13 10 3.5	A
VGN max VGP max Vbat max	Maximum negative battery voltage range Maximum positive battery voltage range Total battery supply voltage	See fig.1	-110 to 0 0 to +95 190	V
Top	Operating temperature range (see note 1)		-20 to +85	°C
Tstg	Storage temperature range		- 55 to + 150	°C
TL	Maximum lead temperature for soldering during 10s		260	°C

Note 1: Within the Top range, the LCP02-150M keeps on operating. The impacts of the ambient temperature are given by derating curves.


Description

The LCP02-150M has been developed to protect SLICs operating on both negative and positive supplies, as well as on high voltage SLICs. It provides crowbar mode protection for both TIP and RING lines. Surge suppression is assumed for each wire by two thyristor structures, one dedicated to positive surges, the second one to negative surges. Both positive and negative threshold levels are programmable by two gates (Gn and Gp). The use of transistors decreases the battery currents during surge suppression.

The LCP02-150M has high Bellcore Core, ITU-T and FCC Part 68 lightning surge ratings, ensuring rugged performance in the field.

The choice of the PowerSo-10TM package is driven by its high power dissipation capability. In addition, the LCP02-150M is also specified to assist a designer to comply with UL1950, IEC950 and CSA C22.2. It is UL 497B approved (file E136224), and has UL94-V0 resin approved

Parameters:

Technical/Catalog Information	LCP02-150M
Vendor	STMicroelectronics
Category	Circuit Protection
Package / Case	PowerSO-10 Exposed Bottom Pad
Packaging	Tube
Technology	Mixed Technology
Applications	SLIC
Number of Circuits	1 - Single
Voltage - Working	-
Voltage - Clamping	-
Power (Watts)	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LCP02 150M LCP02150M
