LC8904Q

Features: • Synchronizes with the transmitted EIAJ format signal using a built-in PLL circuit.• Modes are set up and codes are output according to commands sent over a microprocessor interface. - Input pin and output data format setup - Selection of digital source mode or analog source...

product image

LC8904Q Picture
See larger image
SeekIC No. : 004392629 Detail

LC8904Q: Features: • Synchronizes with the transmitted EIAJ format signal using a built-in PLL circuit.• Modes are set up and codes are output according to commands sent over a microprocessor int...

LC8904Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC8904Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Synchronizes with the transmitted EIAJ format signal using a built-in PLL circuit.
• Modes are set up and codes are output according to commands sent over a microprocessor interface.
  - Input pin and output data format setup
  - Selection of digital source mode or analog source mode
  - 32-bit channel status output (consumer product mode 0)
  - 80-bit subcode Q data output (CRC check included)
• Either a 384fs or a 512fs clock can be selected as the system clock.
• Provides 256fs, 128fs, BCLK, and LRCK clock outputs.
• Implements a CD subcode interface (CP-2401) using user bits.
• Fabricated in a CMOS single-voltage power supply process
• Package: QFP-48E


Pinout

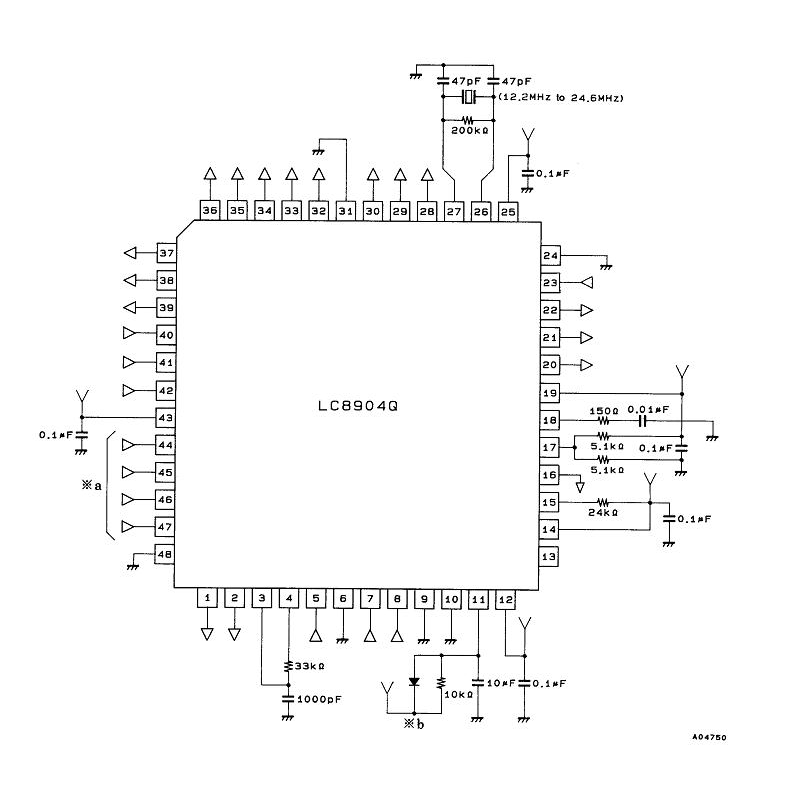

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max   0.3 to +7.0 V
Input/output voltage VI, VO   0.3 to VDD +0.3 V
Operating temperature Topr   30 to +75
Storage temperature Tstg   55 to +125



Description

The LC8904Q demodulates data transmitted between digital audio equipment in the EIAJ format (CP-1201) to a normal format signal synchronized with the receiving side
input signal.
