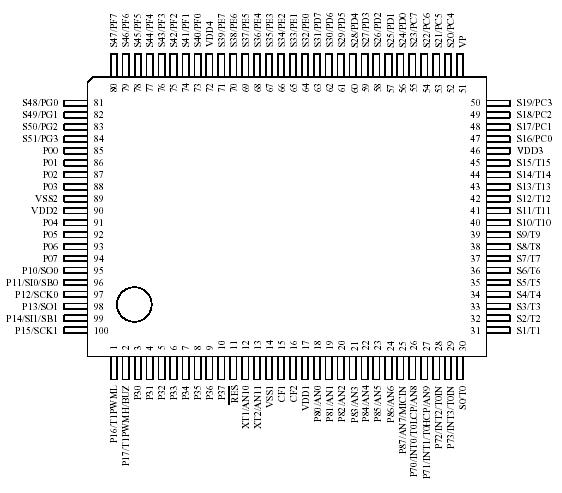

Features: (1) Read-Only Memory (Flash ROM)-single 5V power supply, writeable on-board-block erase in 128 byte units-131072 × 8bits (LC87F65C8A)(2) Random Access Memory (RAM): 2048 × 9 bits (LC87F65C8A)PinoutDescriptionThe LC87F65C8A is an 8 bit single chip microcontroller with the following on-chi...
LC87F65C8A: Features: (1) Read-Only Memory (Flash ROM)-single 5V power supply, writeable on-board-block erase in 128 byte units-131072 × 8bits (LC87F65C8A)(2) Random Access Memory (RAM): 2048 × 9 bits (LC87F65C...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The LC87F65C8A is an 8 bit single chip microcontroller with the following on-chip functional blocks :
- CPU: operable at a minimum bus cycle time of 100 ns
- 128K bytes flash ROM(rewriteable on-board)
- On-chip RAM: 2048 bytes
- VFD automatic display controller / driver
- 16 bit timer / counter (can be divided into two 8 bit timers)
- 16 bit timer / PWM (can be divided into two 8 bit timers)
- timer for use as date / time clock
- synchronous serial I/O port (with automatic block transmit / receive function)
- asynchronous / synchronous serial I/O port
- 12-channel × 8-bit AD converter
- Weak signal detector
- 15-source 10-vectored interrupt system
All of the above functions are fabricated on a single chip.
