Features:

(1) Option switching using PROM data
The optional functions of the LC866000 series can be specified using PROM data.
The functions of the trial products can be evaluated using a mass production board.
(2) Internal one-time PROM capacity : 32768 bytes
(3) Internal RAM capacity : 512 bytes
(4) Operating supply voltage : 4.5V to 6.0V
(5) Instruction cycle time : 0.98s to 400s
(6) Operating temperature range : -30°C to +70°C
(7) Pin and package compatible with the mask ROM version
(8) Applicable mask ROM version : LC866032/LC866028/LC866024/LC866020/LC866016/LC866012/LC866008
(9) Factory shipment : DIP64S: QFP64E


Pinout

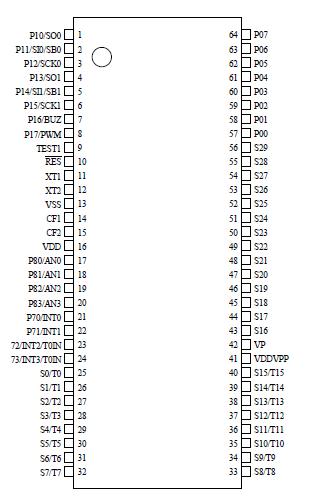

Connection Diagram


Specifications

Parameter
Symbol
 Pins Conditions
Limits
VDD[V]
min
typ
max
unit
Supply voltage
VDDMAX
 VDD,VDDVPP
-0.3
+7.0
V
Input voltage
VI(1)
 •Ports 71,72,3,8
• RES
-0.3
VDD+0.3
Output voltage
VO(2)
 VP
VDD-4.5
VDD+0.3
Output voltage
VO
 •S0/T0 to S15/T15
•S16 to S29		     VDD-4.5   VDD+0.3
Input/output
voltage
VIO
 •Ports 0, 1
•Port 70
-0.3
VDD+0.3
High
level
output
current		 Peak
output
current
IOPH(1)
 Ports 0, 1 •CMOS output
•At each pin
-4
mA
IOPH(2) S0/T0 to S15/T15 •At each pin   -30
IOPH(3) S16 to S29 •At each pin   -15
Total
output
current
IOAH(1)
 Port 0 Total of all pins
-10
IOAH(2)
 Port 1 Total of all pins
-10
IOAH(3) •S0/T0 to S15/T15
•S16 to S29		 Total of all pins.   -130
Low
level
output
current		 Peak
output
current
IOPL(1)
 Ports0, 1 At each pin
20
IOPL(2)
 Port 70 At each pin
15
Total
output
current
IOAL(1)
 Port 0 Total of all pins
40
IOAL(2)
 Ports 1, 70 Total of all pins
40
power dissipation (max.)
Pdmax(1)
 DIP64S Ta=-30 to+70°C

760
mW
Pdmax(2 QFP64E Ta=-30 to+70°C
430
Operating
temperature range
Topr

-30
+70
°C
Storage
temperature range
Tstg

-65
+150



Description

The LC86P6032 microcontroller, a new addition to the LC866000 series, is a 8-bit single chip CMOS microcontroller with one-time PROM. This microcontroller has the same function and pin assignment as for the LC866000 series mask ROM version, and a 32K-byte PROM.
