LC86P5632

Features: · Option switching by PROM data The option function of the LC865600 series can be specified by the PROM data. LC86P5632 can be checked the function of the trial pieces using the mass production board.· Internal one-time PROM capacity : 32768 bytes·Internal RAM capacity : 512 bytes Used P...

product image

LC86P5632 Picture
See larger image
SeekIC No. : 004392417 Detail

LC86P5632: Features: · Option switching by PROM data The option function of the LC865600 series can be specified by the PROM data. LC86P5632 can be checked the function of the trial pieces using the mass produ...

LC86P5632 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC86P5632
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Option switching by PROM data
     The option function of the LC865600 series can be specified by the PROM data.
     LC86P5632 can be checked the function of the trial pieces using the mass production board.
· Internal one-time PROM capacity : 32768 bytes
·Internal RAM capacity : 512 bytes
     Used PROM or RAM capacity are equal ROM or RAM capacity of mask ROM version which applies LC86P5632.


Pinout

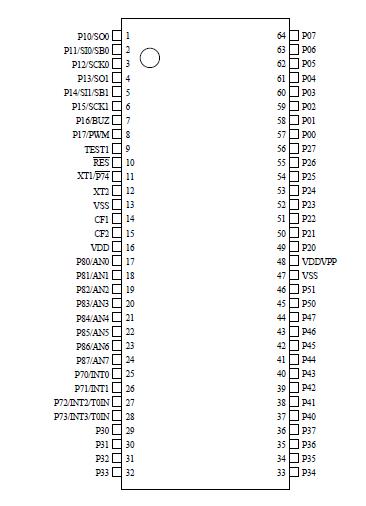

Connection Diagram


Specifications

Parameter
Symbol
Pins
Conditions
Ratings
unit
VDD[V
min.
typ
max.
Supply voltage
VDDMAX
VDD,VDDVPP
-0.3
+7.0
V
Input voltage
VI(1)
•Ports 71,72,73, 74
•Port 8
• RES
-0.3
VDD+0.3
Input/Output
voltage
VIO(1)
•Ports 0,1,2
•Ports 3,4,5 at CMOS
output
-0.3
VDD+0.3
VIO(2)
Ports 3,4,5 at N-ch open
drain output option
-0.3
15
High
level
output
current
Peak
output
current
IOPH(1)
•Ports 0,1,2,3,4,5
-4
mA
Total
output
current
IOAH(1)
1) Ports 0,1,2
-25
IOAH(2)
Ports 3,4,5
-20
Low
level
output
current
Peak0
output
current
IOPL(1)
Ports 0,1,2,3,4,5 At each pins 2
20
IOPL(2)
Port 70
15
Total
output
current
IOAL(1)
Ports 0,1,70
40
IOAL(2)
Port 2
40
IOAL(3)
Ports 3,4,5
80
Maximum power
dissipation
Pdmax(1)
DIP64S
Ta=-30 to+70°C
720
mW
Pdmax(2)
QFP64E
Ta=-30 to+70°C
420
Operating
temperature
range
Topr
-30
70
°C
Storage
temperature
range
Tstg
-65
150
