Features:

• Two sets of eight (or in the LC78213, seven) built-in circuits with three switching configurations available based on differing internal connections
• Control according to serial data sent from a microprocessor, and easy connection to 5 V microprocessors
• Two identical products can be connected to a shared bus due to the provision of a select pin (S).
• A reset pin that turns off all analog switches
• A ±20 V withstand voltage rating allows these products to provide a wide dynamic range.






Application

· Function switching under serial data control in amplifiers, receivers, and other electronic equipment




Pinout

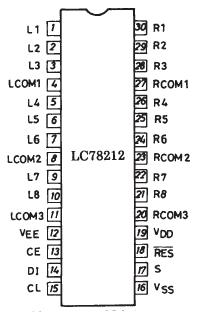

Connection Diagram






Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max VDD 0.3 to +20 V
VEE max VEE 20 to +0.3 V
Maximum input voltage VI1 DI, CL, CE, S, RES 0.3 to +20 V
VI2 L1 to L8, R1 to R8, LCOM1 to LCOM4, RCOM1 to RCOM4 VEE0.3 to VDD + 0.3 V
Analog switch potential difference when on VON With the switch on 0.5 V
Allowable power dissipation Pd max Ta 75°C 100 mW
Operating temperature range Topr 30 to +75 °C
Storage temperature range Tstg 40 to +125 °C
