LC75842E

Features: • 1/2 duty, 1/2 bias drive of up to 54 segments• Serial data input supports CCB* format communication with the system controller.• Backup function which is based on a power saving mode and all segments off functions that are controlled by serial data.• High genera...

product image

LC75842E Picture
See larger image
SeekIC No. : 004392147 Detail

LC75842E: Features: • 1/2 duty, 1/2 bias drive of up to 54 segments• Serial data input supports CCB* format communication with the system controller.• Backup function which is based on a pow...

LC75842E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC75842E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1/2 duty, 1/2 bias drive of up to 54 segments
• Serial data input supports CCB* format communication with the system controller.
• Backup function which is based on a power saving mode and all segments off functions that are controlled by serial data.
• High generality, since display data is displayed directly without decoder intervention.
• The display can be forced to the off state with the INH pin.
• RC oscillator circuit


Pinout

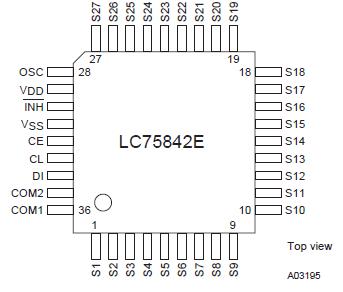

Connection Diagram


Specifications

Parameter Symbol Conditions
Ratings
 Unit
Maximum supply voltage VDDmax VDD
0.3 to +6.5
V
Input voltage VIN1 CE, CL, DI, INH
0.3 to +6.5
V
VIN2 OSC
0.3 to VDD + 0.3
V
Output voltage VOUT OSC, S1 to S27, COM1, COM2
0.3 to VDD + 0.3
V
Output current IOUT1 S1 to S27
100
A
IOUT2 COM1, COM2
1
mA
Allowable power dissipation Pdmax Ta85°C

100
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +125



Description

The LC75842E and LC75842M are 1/2 duty generalpurpose LCD display drivers for applications such as microprocessor-controlled electronic tuning. They can drive up to 54 segments directly.
