Features:

• Key input from up to 25 keys (Key scans are only performed when keys are pressed.)
• 123 segment outputs.
• Noise reduction circuits are built into the output drivers.
• Serial data I/O supports CCB format communication with the system controller.
• Dimmer and sleep mode can be controlled by serial data input.
• High generality since display data is displayed without the intervention of a decoder.
• All segments can be turned off with theBLK pin.




Pinout

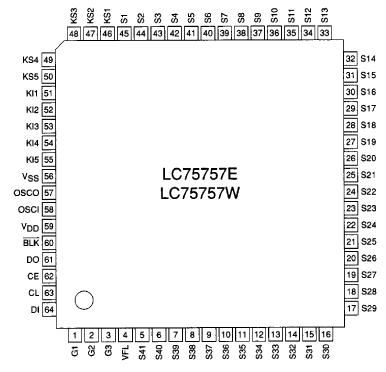

Connection Diagram




Specifications

Parameter Symbol Conditions
Ratings
Unit
Maximum supply voltage VDDmax VDD
0.3 to +6.5
V
VFL max VFL
0.3 to +21.0
V
Input voltage VIN1 DI, CL, CE, BLK
0.3 to +6.5
V
VIN2 OSCI, KI1 to KI5
0.3 to VDD +0.3
V
Output voltage VOUT1 S1 to S41, G1 to G3
0.3 to VFL + 0.3
V
VOUT2 OSCO, KS1 toKS5 0.3 to VDD +0.3
V
VOUT3 DO
0.3 to +6.5
V
Output current IOUT1 S1 to S41
6
mA
IOUT2 G1 to G3
60
mA
IOUT3 KS1 to KS5
1
mA
Allowable powerdissipation Pdmax Ta = 85(LC75757E)
400
mW
Ta = 85(LC75757W)
300
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +150





Description

The LC75757E and LC75757W are 1/3 duty VFD drivers that can be used for electronic tuning frequency display and other applications under the control of a microcontroller. These products can directly drive VFDs with up to 123 segments. It also includes a key scan circuit and can support input from up to 25 keys and can thus reduce the number of lines to the front panel in application systems
