LC75741W

Features: • 106 segment outputs• Noise reduction circuit built into the output drivers.• Display and dimmer data communication with the controller using the CCB* format.• High generality, since display data is displayed directly without decoder intervention• All segme...

product image

LC75741W Picture
See larger image
SeekIC No. : 004392098 Detail

LC75741W: Features: • 106 segment outputs• Noise reduction circuit built into the output drivers.• Display and dimmer data communication with the controller using the CCB* format.• Hig...

LC75741W Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC75741W
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 106 segment outputs
• Noise reduction circuit built into the output drivers.
• Display and dimmer data communication with the controller using the CCB* format.
• High generality, since display data is displayed directly without decoder intervention
• All segments can be turned off with the BLK pins.
• Package: QFP64E (LC75741E)
                  SQFP64 (LC75741W)
   Note: * CCB is Sanyo's original bus format with address management for all Sanyo products.


Pinout

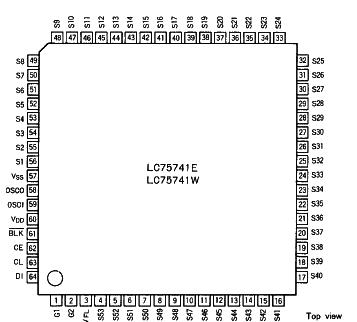

Connection Diagram


Specifications

Parameter Symbol Conditions
Ratings
Unit
Maximum supply voltage VDDmax VDD
0.3 to +6.5
V
VFL max VFL
0.3 to +21.0
V
Input voltage VIN1 DI, CL, CE, BLK
0.3 to +6.5
V
VIN2 OSCI
0.3 to VDD +0.3
V
Output voltage VOUT1 S1 to S53, G1, G2
0.3 to VFL + 0.3
V
VOUT2 OSCO
0.3 to VDD +0.3
V
Output current IOUT1 S1 to S53
5
mA
IOUT2 G1, G2
60
mA
Allowable powerdissipation Pdmax Ta 85°C
400 (LC75741E)
mW
300 (LC75741W)
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +150



Description

The LC75741E and LC75741W are 1/2 duty VFD drivers for use in electronic tuning frequency displays controlled by a microcontroller. These products can directly drive VFD displays with up to 106 segments.
