LC75421M

Features: • On-chip buffer amplifier cuts down number of external components• Low switching noise generated by on-chip switch due to use of silicon gate CMOS process • On-chip reference voltage circuit for analog ground• Controls performed with serial input (CCB)PinoutSpeci...

product image

LC75421M Picture
See larger image
SeekIC No. : 004392090 Detail

LC75421M: Features: • On-chip buffer amplifier cuts down number of external components• Low switching noise generated by on-chip switch due to use of silicon gate CMOS process • On-chip refe...

LC75421M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC75421M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• On-chip buffer amplifier cuts down number of external components
• Low switching noise generated by on-chip switch due to use of silicon gate CMOS process
• On-chip reference voltage circuit for analog ground
• Controls performed with serial input (CCB)




Pinout

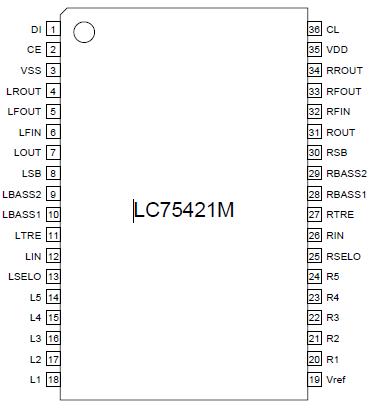

Connection Diagram




Specifications

Parameter Symbol Conditions
Ratings
Unit
Maximum supply voltage VDDmax VDD
11
V
Maximum input voltage VIN max CE, DI, CL
0.3 to 11
V
Input pins other than CE, DI, CL
VSS 0.3 toVDD + 0.3
Allowable powerdissipation Pdmax Ta 85°C, when mounted on board
550
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +125





Description

The LC75421M is an electronic volume controller that enables control of volume, balance, fader, bass/treble + super bass, input switching, and input and output level control functions using only a small number of external components.
